Description
Technical Sheet:| Parameter | Specification |
|---|---|

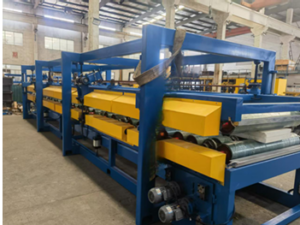

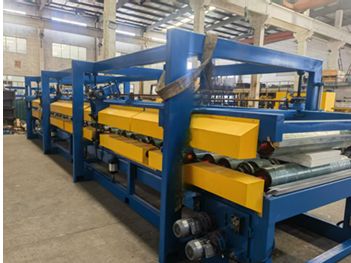

| Machine Type | Multi-functional Sandwich Panel Production Line |
| Main Unit Length | 10 m |
| Rollers | 63 upper and lower rollers |
| Roller Diameter | 180 mm |
| Voltage | 380 V, 50 Hz |
| Speed Control | Individual frequency inverter control for conveyors |
| Roller Frame Adjustment | Pneumatic lifting of corrugated roller frame |
| Finished Product Cutting | Servo motor tracking cutting system |
| Electrical Components | Schneider Electric, Chint |
| Frequency Inverter | Hailipu |
| Auxiliary Equipment | Power |
|---|---|
| Air Compressor | 5.5 kW or 7.5 kW |
| Overhead Crane / Electric Hoist | 5-ton capacity |
