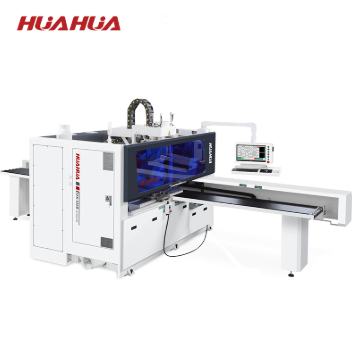

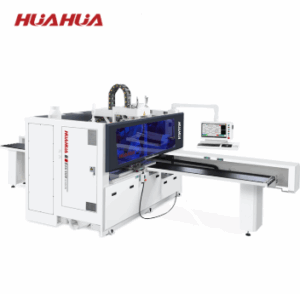

Guangdong Shunde Changsheng Machinery Manufacturing Co., Ltd. – CNC drilling machine – SKH-612MT
0,00€
- Control System: 19″ PC with Syntec control system
- Processing Size Range:
- Min. Width of work-piece: 50mm
- Max. Width of work-piece: 1200mm
- Max. Length of work-piece: 2400mm
- Min. Length of work-piece: 200mm
- Max. Thickness of work-piece: 48mm
- Min. Thickness of work-piece: 12mm
- Working Stroke & Max. Position Speed:
- X axis: 4580mm, 85m/min
- Y axis: 1380mm, 60m/min
- Z axis: 82mm, 20m/min
- U axis: 2580mm, 85m/min
- V axis: 1100mm, 60m/min
- W axis: 118mm, 20m/min
- A axis: 960mm, 35m/min
- Top Drilling Unit:
- Vertical spindles: 12
- Horizontal Spindles: 4 (X axis) + 4 (Y axis)
- Drilling box motor speed: 3400rpm
- Router Motor power: 2.2kW, speed 12000rpm
- Bottom Drilling Unit:
- Vertical spindles: 6
- Horizontal Spindles: 0
- Drilling box motor speed: 3400rpm
- Router Motor power: 2.2kW, speed 12000rpm
- Other Data:
- Working table height: 1020mm
- Total Power: 17kW
- Weight: 3250kg
- Overall dimensions: 5.8m x 3.0m x 2.2m
