ZW HOPES (ANHUI ZHONGWANG PRECISION MACHINERY MANUFACTURING CO.,LTD,) – Press brake – ZW electro-hydraulic servo series – No. 63T1600

0,00€





Technical Specifications

CNC Control Axis Y1-Y2-X-R-axis
Bending Force: Ton 63

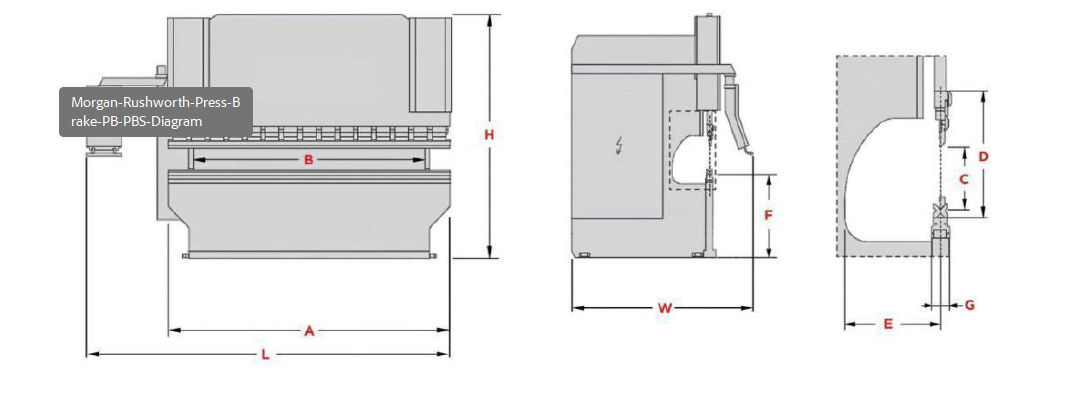

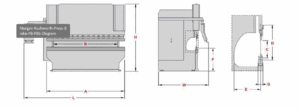

Bending Length (A) mm 1600
Distance Between Columns(B) mm 1200
Slide Stroke(C) mm 150
Max Opening Height(D) mm 450
Working Table Height(F) mm 650
Approaching Speed mm/sec 180
Work Speed: mm/sec 12
Motor Power: kw 5.5
Overall Dimensions (L*W*H) mm: 1900X1500X2100
Machine Weight: kg 3500
Voltage Supply: 380V, 50Hz, three phase

Out of stock

SKU: 3229 Category:
The item has not been assessed for digitalization/automation

Description

Technical Specifications

  • CNC Control Axis Y1-Y2-X-R-axis
  • Bending Force: Ton 63
  • Bending Length (A) mm 1600
  • Distance Between Columns(B) mm 1200
  • Slide Stroke(C) mm 150
  • Max Opening Height(D) mm 450
  • Working Table Height(F) mm 650
  • Approaching Speed mm/sec 180
  • Work Speed: mm/sec 12
  • Motor Power: kw 5.5
  • Overall Dimensions (L*W*H) mm: 1900X1500X2100
  • Machine Weight: kg 3500
  • Voltage Supply: 380V, 50Hz, three phase
