Description

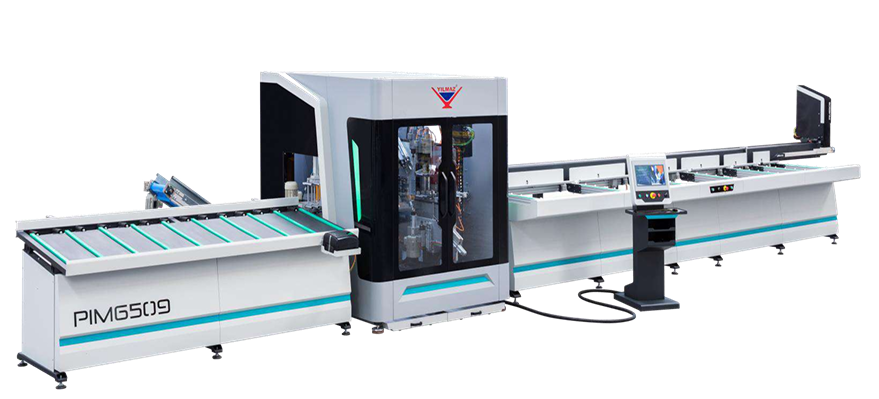

Technical Sheet:
8-axis NC control system.
Max profile length: 6,500 mm
Min profile length: 700 mm
Saw diameter: 550 mm
Milling motors: 10 + 1
Power supply: 400 V, 3-phase, 50/60 Hz
Installed power: 16–17 kW
Air pressure: 6–8 bar
Machine dimensions: approx. 13.5 m × 2.37 m × 2.31 m
Weight: approx. 3.7–4.1 t
