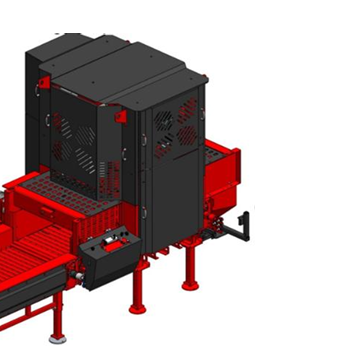

X-Firewood Factory - Log splitter - P90X

X-Firewood Factory – Log splitter – P90X

0,00€

Technical Sheet:

Automation & Control

  • Automatic control via IFM Electronic CR711S PLC (included)

  • X-blade splitting geometry for multi-directional splitting

Power & Electrical

  • Electric motor: 18.5 kW

  • Power supply: 400 V / 50 Hz

  • Minimum fuse size: 63 A

Mechanical Specifications

  • Height (max): 3,172 mm (125 in)

  • Width: 2,162 mm (85 in)

  • Length in operating position: 2,737 mm (108 in)

  • Weight (max): 5,400 kg (11,905 lbs)

Capacity

  • Splitting force: 47 tonnes

  • Maximum log diameter: 900 mm (35 in)

  • Maximum log length: 450 mm (18 in)

Out of stock

SKU: 3863 Category:
The item has been assessed for digitalization/automation

Description

Technical Sheet:

Automation & Control

  • Automatic control via IFM Electronic CR711S PLC (included)

  • X-blade splitting geometry for multi-directional splitting

Power & Electrical

  • Electric motor: 18.5 kW

  • Power supply: 400 V / 50 Hz

  • Minimum fuse size: 63 A

Mechanical Specifications

  • Height (max): 3,172 mm (125 in)

  • Width: 2,162 mm (85 in)

  • Length in operating position: 2,737 mm (108 in)

  • Weight (max): 5,400 kg (11,905 lbs)

Capacity

  • Splitting force: 47 tonnes

  • Maximum log diameter: 900 mm (35 in)

  • Maximum log length: 450 mm (18 in)
