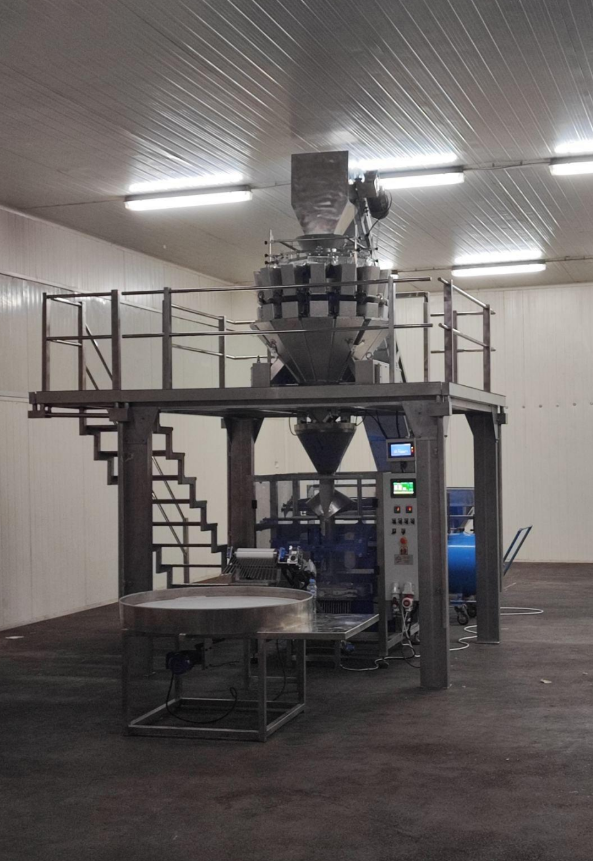

Uzun-komerc doo - Production line for nuts packaging in bags with inert gas insertion for shelf-life extention - KU-0303-V4

Uzun-komerc doo – Production line for nuts packaging in bags with inert gas insertion for shelf-life extention – KU-0303-V4

0,00€

Technical Specifications:

  • Packaging goods: pistachios, almonds, walnut kernels, raisins, hazelnuts, shelled peanuts, and other small-grained products Unit weights: DIJAPAZON 50 g. – 500g. Finished product capacity: – 50 g. max up to 40 packages/minute – 500 g, max up to 35 packages/minute
  • Control, monitoring and auto diagnostics using high resolution PLC equipment of 1MHz response for minimum response time of signal pulses; – Machine controls via Color Touch Screen monitor 8”; – One (1) tube format for making bags (collar), max. foil width 500 mm; – Pulling the packaging with belts using a servo motor;
  • Automatic centering of the foil; – Photocell for detecting photo markers on the foil; – Control cabinet made according to standards for safety against electric shock
  • Includes:
  • MultiIHEAD SCALE FOR POWDERED AND FINE-GRAINED PRODUCTS TYPE 1 0HFG Installed power 5.5 kW
    2. RECEIVING BASKET WITH TRACKING ELEVATOR FOR CONTROLLED DELIVERY OF GOODS TO THE HEIGHT Installed power 3.5 kW
    3. RECEIVING HOPPER WITH SILICONE TUBE FOR DIRECTING WEIGHED ITEMS INTO THE TUB Installed power 0.2 kW
    4. AUTOMATIC PLACEMENT OF TUBES ON THE CONVEYOR BELT Installed power 0.15 kW
    5. CONVEYOR BELT, POSITIONING THE TUB UNDER THE HOPPER, VIBRATING THE GOODS IN THE TUB, AND TRANSPORTING THE TUB TO THE NEXT PHASE OF WORK Installed power 0.37 kW
    6. AUTOMATIC GLUING MACHINE PVC COVER ON THE TUB AND INSERTING INERT GAS BEFORE THE COVER. Installed power 4 kW
    7. CONVEYOR BELT, POSITIONING THE TUB BEFORE MOUNTING THE PLASTIC COVER, AND SUBSEQUENT LOADING OF THE COVER ON THE TUB Installed power 0.37 kW
    8. SANZER FOR AUTOMATIC LOADING OF COVERS ON THE TUB. Installed power 0.10 kW
    9. PNEUMATIC PRESS FOR SUBSEQUENT LOADING OF COVERS ON THE TUB Installed power 0.10 kW
    10. ROTARY TABLE FOR RECEIVING AND ACCUMULATING PACKAGED PRODUCTS READY FOR PACKING INTO COLLECTIVE TRANSPORT BOXES; installed power 0.37 kW
    Total compressed air consumption for 7 hours is 150 L / min.
    Total installed power: 14.66 kW

Out of stock

SKU: 3754 Category:
The item has not been assessed for digitalization/automation

Description

Technical Specifications:

  • Packaging goods: pistachios, almonds, walnut kernels, raisins, hazelnuts, shelled peanuts, and other small-grained products Unit weights: DIJAPAZON 50 g. – 500g. Finished product capacity: – 50 g. max up to 40 packages/minute – 500 g, max up to 35 packages/minute
  • Control, monitoring and auto diagnostics using high resolution PLC equipment of 1MHz response for minimum response time of signal pulses; – Machine controls via Color Touch Screen monitor 8”; – One (1) tube format for making bags (collar), max. foil width 500 mm; – Pulling the packaging with belts using a servo motor;
  • Automatic centering of the foil; – Photocell for detecting photo markers on the foil; – Control cabinet made according to standards for safety against electric shock
  • Includes:
  • . SELF-STANDING PLATFORM, dimensions: 2500x2000x2200 mm;
    2. MULTIHEAD SCALE FOR POWDERY AND FINE-GRADED PRODUCTS TYPE 10HFG;
    3. RECEIVING BASKET WITH SCREW ELEVATOR FOR CONTROLLED DELIVERY OF GOODS TO THE HEIGHT OF THE MULTIHEAD SCALE;
    4. RECEPTION FUNNEL WITH SILICONE PIPE FOR DIRECTION WEIGHED ITEMS INTO A TUB
    5. AUTOMATIC PLACEMENT OF TUB ON THE TRANSPORTER TAPE
    6. TRANSPORT BELT, POSITIONING THE TUB BELOW FUNNEL, VIBRATING THE GOODS IN THE TUB, AND TRANSPORTING THE TUB TO THE NEXT STAGES OF WORK
    7. MACHINE FOR AUTOMATIC GLUING PVC COVER ON BAG AND INSERTING INERT GAS BEFORE THE LID.
    8. TRANSPORT BELT, POSITIONING THE TUB BEFORE MOUNTING THE PLASTIC COVER, AND SUBSEQUENTLY PUSHING THE LID ON THE TUB
    9. CHANGER FOR AUTOMATIC LID PUTTING ON TUB.
    10. PNEUMATIC PRESS FOR POST-ATTACHING THE COVER TO THE TUB
    11. ROTO TABLE FOR RECEIVING AND ACCUMULATING PACKAGED PRODUCTS READY FOR PACKAGING INTO COLLECTIVE TRANSPORT BOXES
