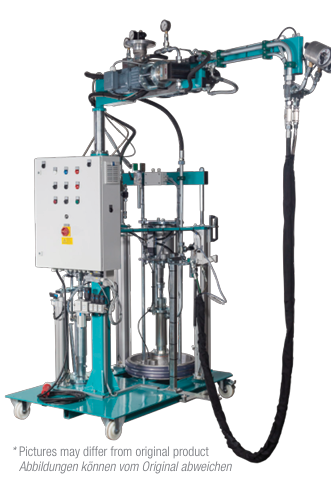

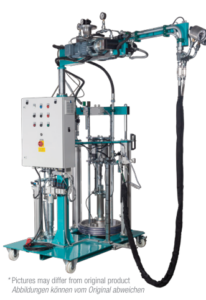

t-s-i.de Misch- und Dosiertechnik GmbH – Two-component mixing and metering gear pump system – Mastermix gear basic

Description

Loading...

Taking too long?

Reload document

| Open in new tab

Download [549.83 KB]

Technical sheet
outflow depending on viscosity,
temperature, batch
of material etc.
A-side powered pneumatic
B-side powered pneumatic
power supply 3 x 400 V + N + PE/ 3.8 kW
compressed air requirement 6 bar, 600 l/min.
dimensions l x w x h 1500 x 1000 x 1800 mm
height with swivel arm 2500 mm
standard swivel arm length 1200 mm
standard hose length 2500 mm
weight approx. 620 kg
article number 2342-0001-1000
