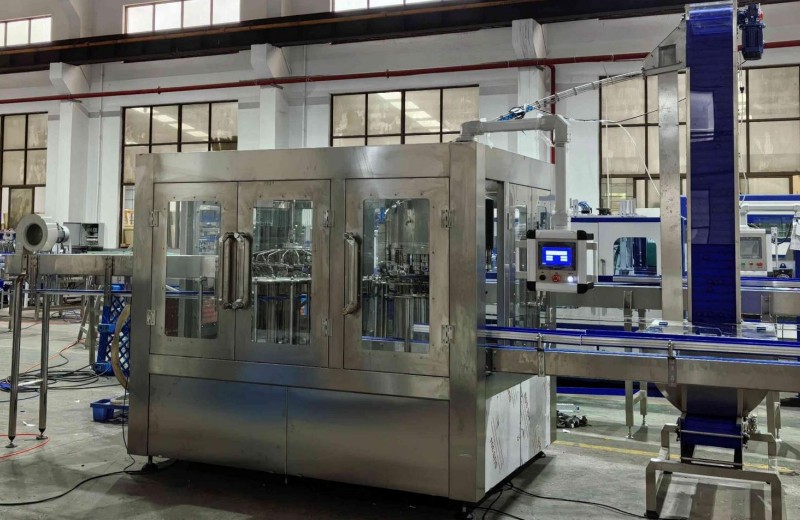

Shenzhen J&D Drinking water equipment CO., LTD and Shenzhen J&D Packing TECH CO., LTD – Wash/Fill/Capping machine (4000-5000BPH-0,5L), with Air conveyor for empty bottles, with Conveyor for bottles with Juice and spare parts – JND 14-12-5

Description

Technical Specifications:

Model JND 14-12-5
Production Capacity (BPH) (500ml): 4000-5000
Filling Pressure (Mpa): ≤0.4
Bottle Dimension: (Bottle Diameter)Φ50-Φ100mm, (Height)150-320mm, (Volume)250-2000ml
Cap Shape: Plastic Screw Cap
Gas Source Pressure (Mpa): 0.6
Gas Consumption (m3/min): 0.25
Total Power (kw): 4.8

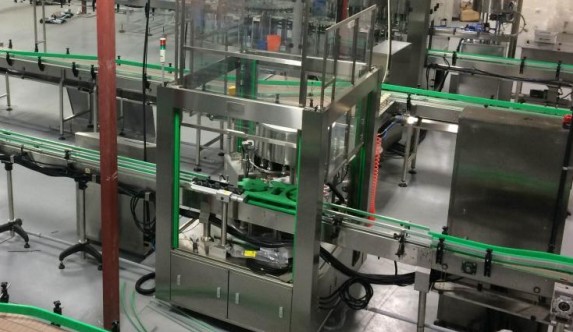

This equipment has air conveyor for empty bottles, and conveyor for bottles with juice(liquid)
