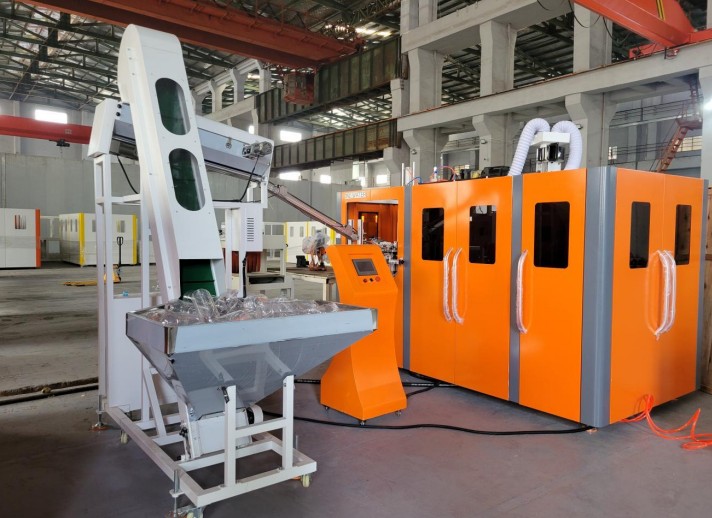

Shenzhen J&D Drinking water equipment CO., LTD and Shenzhen J&D Packing TECH CO., LTD – 2 cavity PET bottle blowing machine with high pressure compressor and auxiliary equipment – JND SS 2500

Description

Technical Specifications:

Main Machine Parameter
Cavity: 2 cavities
Clamping Force: 48000KG
Mold Route: 125mm
Stretching Rod Route: 330mm
Bottom Mold Route: 50mm
Bottle Spacing:  114.3mm
Preform Heating Heads: 58pcs
Products Parameter
Max Capacity: 1500ml
Max Bottle Height: 330mm
Max Bottle Diameter: 105mm
Max Preform Height: 140mm
Max bottle Neck Size: 30-38mm
Theoretical Output Capacity: 2500BPH(500ml, 12g, 30 neck standard bottle)
Electrical Parameter
Heating Oven Qty. 4*4pcs
Heating Lamp Qty. 9pcs
Heating Configuration Power: 48KW
Total Power Capacity: 92KW
Voltage: 380V/50Hz

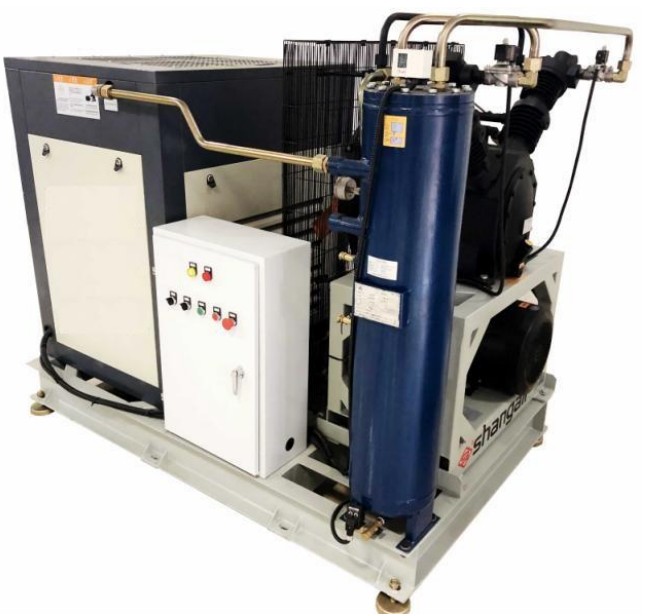

High pressure compressor technical parameter:

Air discharge: 6.0 m³/min
Operating pressure: 4.0 MPa
Motor power: 67 kW
Running speed: 630 r/min
Weight: 1850 kg
Package: 2500 × 2250
