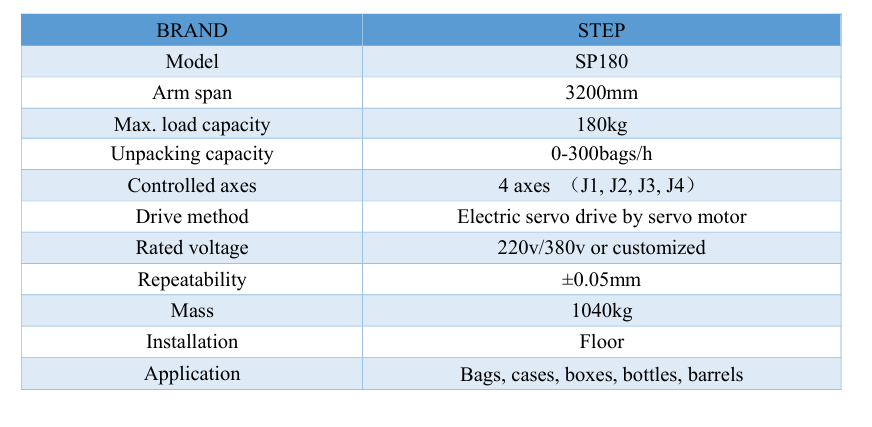

Technical Sheet:

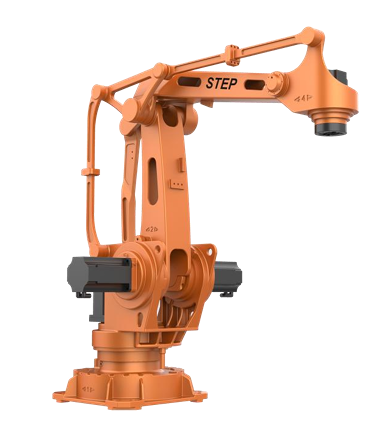

Industrial 4-axis unpacking robot designed for automated handling and opening of bags in production lines.
Model: STEP-SP180.
Arm reach (span): 3,200 mm.
Maximum payload capacity: 180 kg.
Unpacking capacity: up to 300 bags/hour.
Controlled axes: 4 axes (J1, J2, J3, J4).
Drive system: electric servo drive with servo motors.
Rated voltage: 220 V / 380 V (customizable).
Positioning repeatability: ±0.05 mm.
Machine weight: 1,040 kg.
Installation type: floor-mounted.
Suitable for handling bags, cases, boxes, bottles, and barrel
