Description
Technical Specifications:
| Parameter |
Specification |

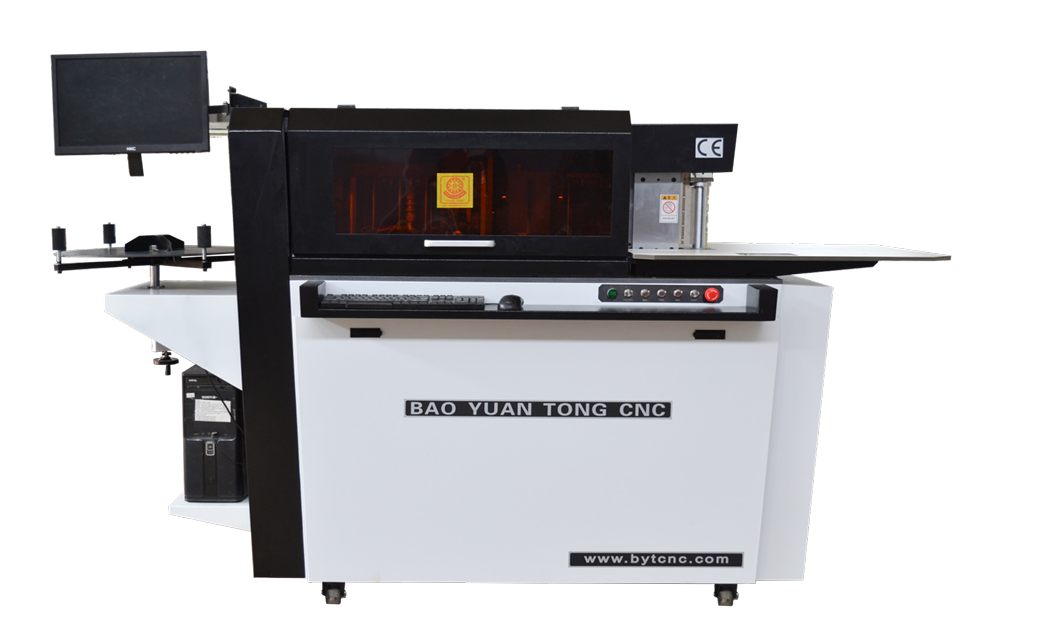

| Model |
BWZ-C1 |
| Function |
Automatic feeding, slotting and bending |
| Applicable Materials |
Stainless steel, aluminium, galvanised steel, iron, and channelume |
| Material Width Capacity |
Stainless steel: ≤160 mm; Flat aluminium: ≤160 mm; Fold aluminium: ≤130 mm; Channelume: 70, 90, 110 mm |
| Material Thickness Capacity |
Stainless steel: 0.3–1.2 mm; Aluminium: 0.3–1.5 mm |
| Minimum Bending Radius |
7 mm |
| Feeding System |
Ø45 mm feeding wheel with material guide, encoder and exit control device |
| Slotting Motor |
Schneider servo motor (France) |
| Slotting Control |
Motor-controlled |
| Bending System |
Coupled double copper shaft flat arc bender and stainless-steel arc bender |
| Control System |
ADT control system |
| Power Consumption |
< 2,000 W |
| Working Voltage |
220 V, 50–60 Hz, 1 Phase |
| Net Weight |
500 kg |
| Overall |
2,680 × 880 × 1,590 mm |
