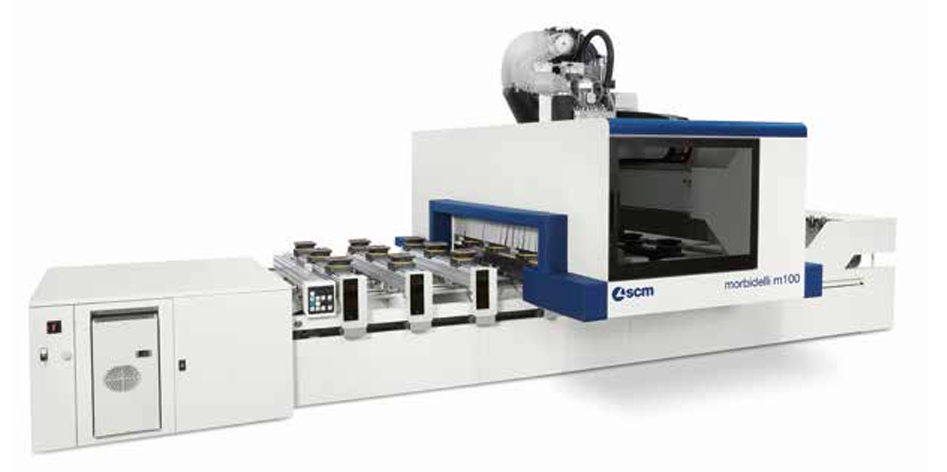

SCM – Numerical controlled machining centres – Morbidelli m100

Description

Loading...

Taking too long?

Reload document

| Open in new tab

Download [31.80 KB]

Technical Sheet:

• X-Y Axes
  • X-Y vectorial speed, “PRO-SPACE” version: 56 m/min
  • X-Y vectorial speed, “PRO-SPEED” version: 78 m/min
  • Z-axis panel clearance: 180 mm (250 mm optional)

• Routing Unit
  • Maximum motor power: 15 kW (20.5 hp)
  • Maximum spindle speed: 24,000 rpm
  • Tool changer capacity: up to 57 tools

• Drilling Unit
  • Independent vertical spindles: up to 21
  • Independent horizontal spindles: up to 12
  • Maximum spindle speed: 8,000 rpm
  • Integrated X-axis saw blade diameter: 125 mm

• Installation Requirements
  • Exhaust air consumption: 4,430 m³/h
  • Exhaust air velocity: 25 m/s
  • Exhaust outlet diameter: 250 mm
