Description
Technical Specifications:
| Parameter |
Specification |
| Manufacturer |
SCM Group S.P.A. |
| Model |

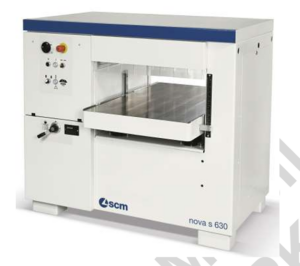

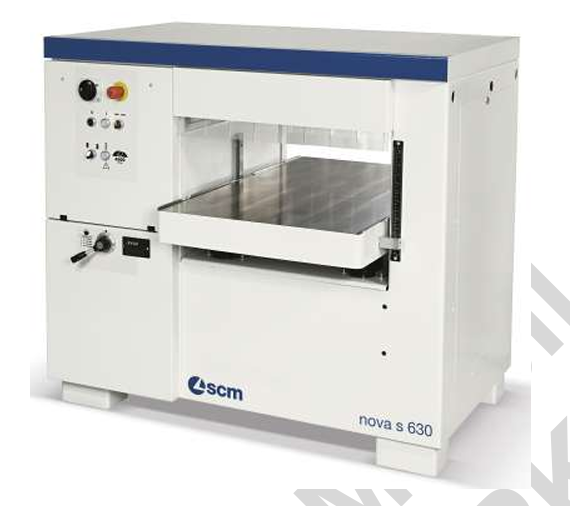

Nova S 630 |
| Machine Type |
Thickness Planer |
| Working Width |
630 mm |
| Worktable Dimensions |
630 × 1,000 mm |
| Working Height Range |
3.5 – 300 mm |
| Maximum Material Removal per Pass |
8 mm |
| Minimum Workpiece Length |
260 mm |
| Minimum Workpiece Width |
10 mm |
| Cutterhead Diameter |
120 mm |
| Number of Knives |
4 |
| Knife Dimensions |
35 × 3 × 640 mm |
| Cutterhead Speed |
4,500 rpm |
| Feed Speeds |
5, 8, 12 and 18 m/min |
| Dust Extraction Outlet Diameter |
150 mm |
| Main Motor Power |
5.5 kW (S1) / 7 kW (S6) |
| Power Supply |
400 V, 50 Hz |
