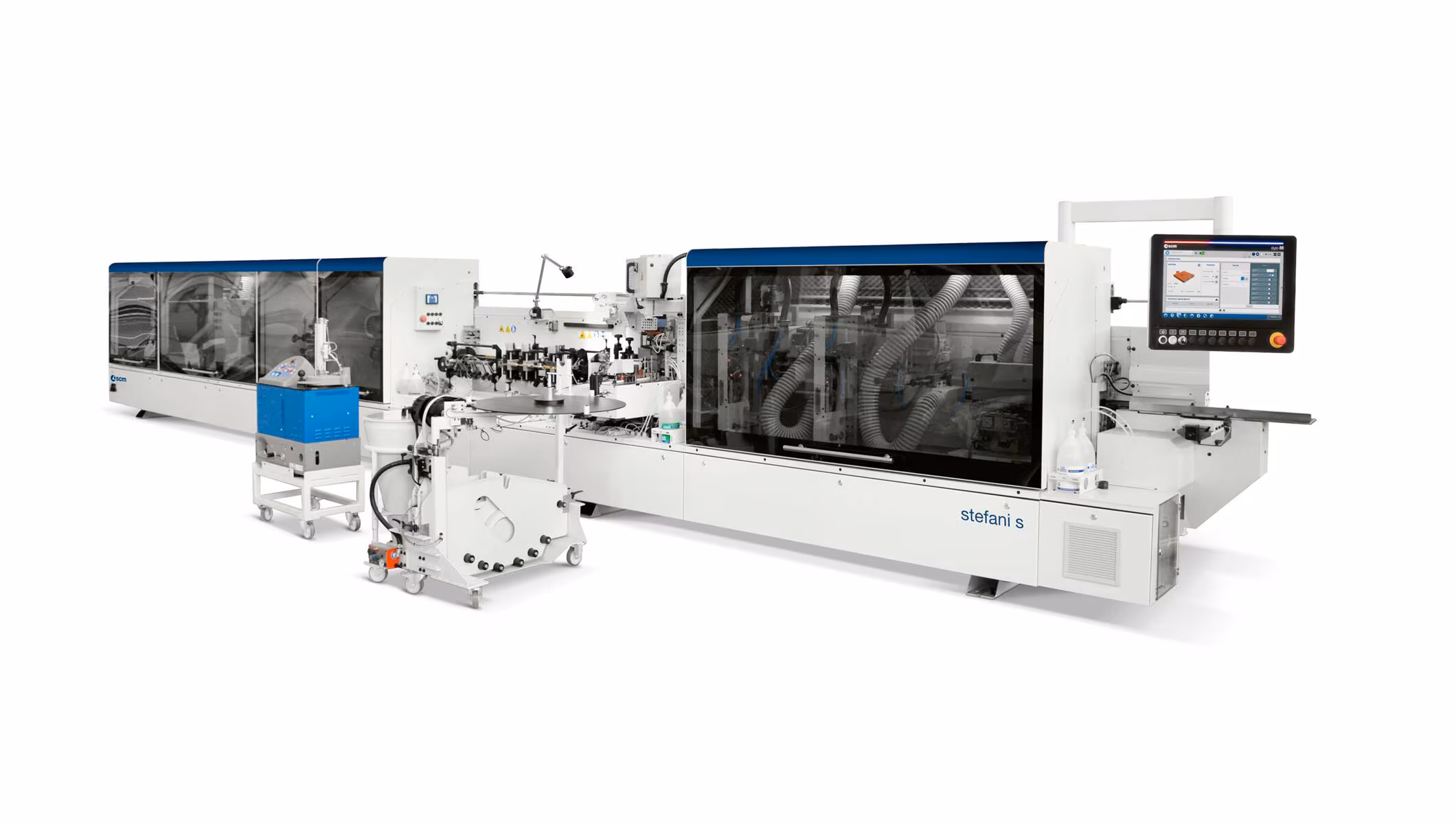

SCM GROUP S.P.A. – Single-Sided Automatic Edge Banding Machine – STEFANI S

Description

Technical Sheet:

Technical data:
Panel thickness:
With max. 1 mm edge thickness: 8–60 mm
With max. 2 mm edge thickness: 10–60 mm
With max. 3 mm edge thickness: 12–60 mm
Min./max. edge thickness: 0.3–3 mm
Motor power: 4 x 0.35 kW
Motor rotation speed: 12,000 rpm
Max. track feed speed: 25 m/min
Min. radius Concave profile: 36 mm
Panel overhang: 30 mm
Panel gap (tail/head) at 25 m/min: 540 mm
Minimum panel length:
– 120 mm on single-sided edgebander (at a speed of 12 m/min)
– 220 mm on single-sided edgebander (at a speed of 25 m/min)
– 80 mm on double-sided edgebander
Automatic cut-out: max. 25 mm
Tools with tongue/key interface not installed
