Technical Specifications:Description
| Parameter | Specification |
|---|---|

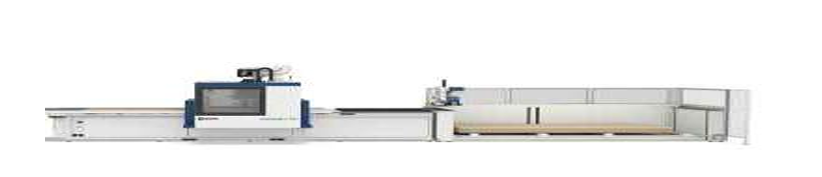

| Machine Type | CNC Nesting Machining Center |
| Work Area X | 4,317 mm |
| Work Area Y | 2,177 mm |
| Table Dimensions | 4,356 × 2,216 mm |
| Vacuum Zones | 8 |
| Z Passage | 150 mm |
| Axis Speed | 70 m/min |
| X Drive | Dual Gantry Drive |
| X-Y Transmission | Rack and Pinion |
| Operating Pressure | 6.5 bar |
| Compressed Air Consumption | 400 NL/min |
| Voltage | 400 V, 50 Hz |
| Installed Power | 51.9 kVA |
| Maximum Current | 75 A |
