Technical Specifications:
| Parameter |
Specification |

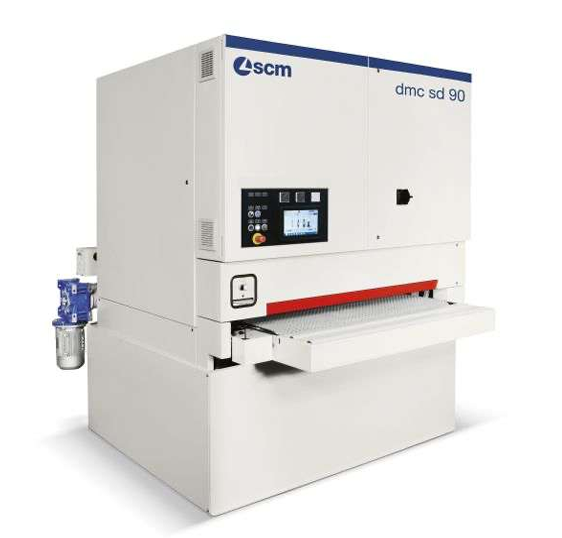

| Manufacturer |
SCM Group S.P.A. |
| Model |
DMC SD 90 |
| Machine Type |
Automatic Wide Belt Sander |
| Configuration |
RRT 135 (Roller-Roller-Superfinishing Pad) |
| Working Width |
1,350 mm |
| Working Thickness Range |
4 – 170 mm |
| Sanding Belt Width |
1,370 mm |
| Sanding Belt Length |
2,620 mm |
| Feed Speed |
4.5 – 9 m/min (variable) |
| Feed Belt Speed (with |
3.5 – 18 m/min |
| 1st Sanding Unit |
Calibrating roller |
| 2nd Sanding Unit |
Sanding roller |
| 3rd Sanding Unit |
Electronic superfinishing pad |
| 1st Unit Motor Power |
18.5 kW (25 HP) |
| 2nd Unit Motor Power |
11 kW (15 HP) with inverter |
| 3rd Unit Motor Power |
11 kW (15 HP) with inverter |
| Feed Belt Motor |
2.2 kW inverter-controlled |
| Sanding Belt Speed |
3 – 18 m/s |
| Worktable Height |
900 mm |
| Power Supply |
400 V, 50 Hz, Three-phase |
| Control System |
10″ Eye-S touchscreen control panel |
| Electronic Pad System |
MESAR 24 electronic sectional pad (24 sections) |
| Programming System |
Logic 50 electronic programmer |
| Dust Extraction & Cleaning |
Oscillating belt cleaning blowers, rotating panel cleaning unit |
| Vacuum System |
Integrated inverter-controlled vacuum fan up to 4 kW |
