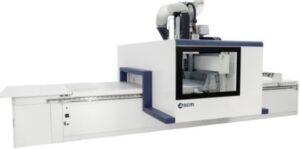

SCM – CNC working center with single table in cell version – Morbidelli x 400 cell

Description

Technical Specifications:

-10mm diameter vertical drill bit holder and 8mm diameter horizontal drill bit holder, WELDON type
– 32mm spindle center distance
– 21 independent pneumatic vertical spindles
– 5 lowered horizontal drilling heads with double output
(one per side), 3 in the X direction and 2 in the Y direction
– Inverter-controlled drill rotation speed 3,000-8,000 rpm
– 1 integrated blade in the X direction (max. diameter 125 mm,
thickness 2.2 to 6 mm)
– Inverter-controlled blade rotation speed 5,000-10,000 rpm
– Predisposition for integrated hinge head (not
supplied)
– Spindle rotation motor power up to 3.9 kW (5.3 hp) – [2.2 kW (3 hp) at 50 Hz]
– 60 mm vertical travel ON-OFF Pneumatically operated for each
vertical spindle and blade
– 75 mm vertical travel with pneumatic ON/OFF for the
horizontal heads
– Mechanical locking system for the drill bit
“Quarterlock” that allows the tool to be mounted/removed
using a single M8 screw and a 90-degree rotation
of the hex key
