Rosendahl Knill Gruppe – Dual flyer pay-off – DAB 800

0,00€

Pay-off stand for continuous production fitted with idle reels. Two housings made of soft
cast iron are mounted to one common base. The inner end of the wire and the starting
end of the full reel are led out of a horizontal slot of the housing and welded together,
thus ensuring a continuous run.
Each housing is equipped with a reel lifting carriage containing the mandrel for the reels,
the flyer disk and the A.C. motor. The wire is paid off via the flange of the non-rotating
reel which is covered by a flyer cap driven by a reversible threephase A.C. motor. The
motor is fed via a plug-in cable from the control board.
Wire change detection
At the pay-off housing a wire change detection is mounted. This device gives a signal at
the welding point (where both wire ends are connected together) during changing from
one reel to the other. This signal can be used for further activities (e.g. starting the cutover process on take-up side).

  • Flange diameter 630 – 800 mm
  •  Barrel diameter at least half of flange diameter
  •  Width over hubs 300 – 600 mm
  • Diameter of mandrel 56 mm
  • Maximum reel weight 1.200 kg
  • Diameter of mandrel 127 mm

Out of stock

SKU: 3539 Category:
The item has been assessed for digitalization/automation

Description



Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [202.11 KB]

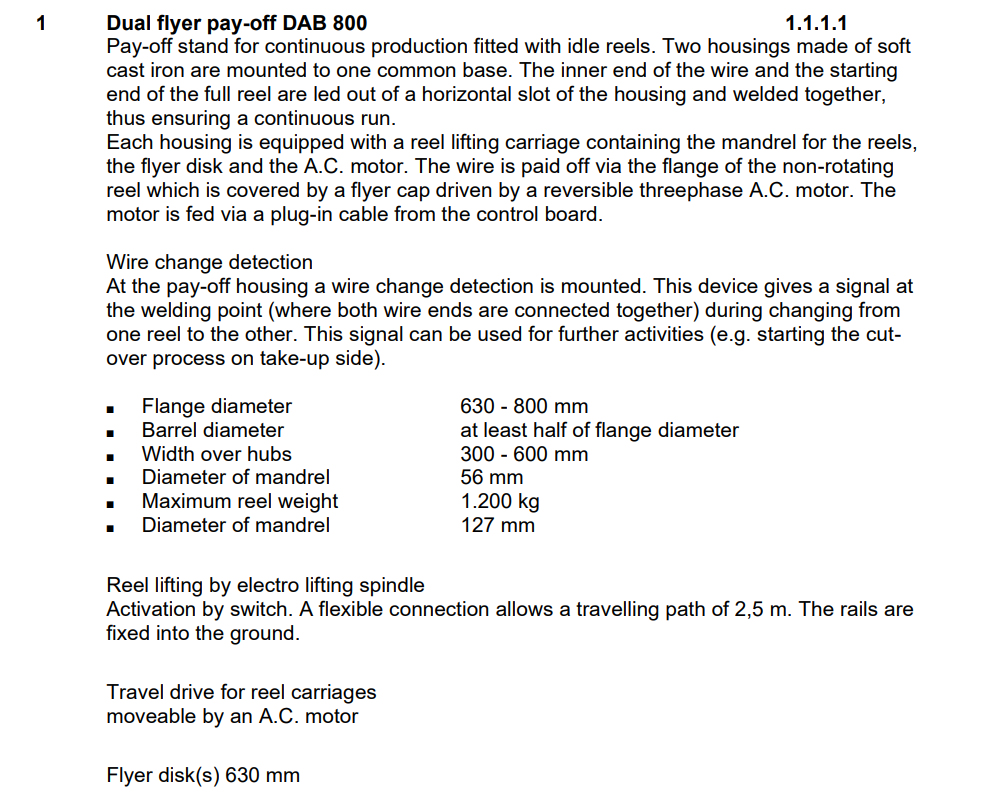

Technical sheet:

Pay-off stand for continuous production fitted with idle reels. Two housings made of soft
cast iron are mounted to one common base. The inner end of the wire and the starting
end of the full reel are led out of a horizontal slot of the housing and welded together,
thus ensuring a continuous run.
Each housing is equipped with a reel lifting carriage containing the mandrel for the reels,
the flyer disk and the A.C. motor. The wire is paid off via the flange of the non-rotating
reel which is covered by a flyer cap driven by a reversible threephase A.C. motor. The
motor is fed via a plug-in cable from the control board.
Wire change detection
At the pay-off housing a wire change detection is mounted. This device gives a signal at
the welding point (where both wire ends are connected together) during changing from
one reel to the other. This signal can be used for further activities (e.g. starting the cutover process on take-up side).

  • Flange diameter 630 – 800 mm
  •  Barrel diameter at least half of flange diameter
  •  Width over hubs 300 – 600 mm
  • Diameter of mandrel 56 mm
  • Maximum reel weight 1.200 kg
  • Diameter of mandrel 127 mm
