Rosendahl Knill Gruppe -Belt type wheel capstan – BSA 166

0,00€

The belt wheel capstan controls the tension of the product.
The product is guided between the driven capstan and the belt.
■ Diameter of the capstan wheel 166 mm
■ Surface of the capstan wheel chrome oxide coated
■ Wind round 180 degrees with pressure belt
■ Width of the pressure belt 30 mm
■ max. line speed 1500 m/min
■ A.C. drive 2,2 kW■ Operation mode Tension control
■ Tension
max. 100 N ( up to 1000 m/min line speed )
max. 80 N ( from 1000 to 1500 m/min line speed )
■ Product diameter range 0,5 – 4,5 m

Controlled by Siemens S7 PLC

Out of stock

SKU: 3540 Category:
The item has been assessed for digitalization/automation

Description

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [97.70 KB]

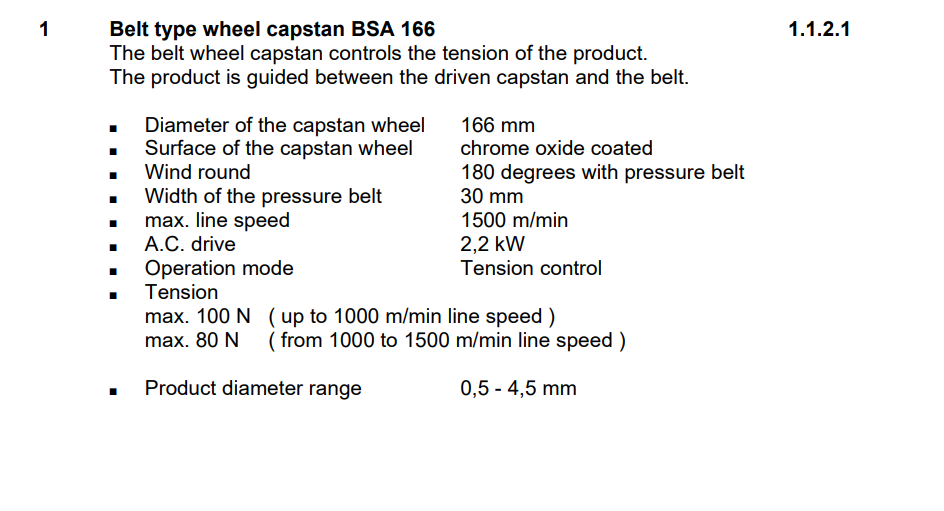

Technical Sheet:

The belt wheel capstan controls the tension of the product.
The product is guided between the driven capstan and the belt.
■ Diameter of the capstan wheel 166 mm
■ Surface of the capstan wheel chrome oxide coated
■ Wind round 180 degrees with pressure belt
■ Width of the pressure belt 30 mm
■ max. line speed 1500 m/min
■ A.C. drive 2,2 kW
■ Operation mode Tension control
■ Tension
max. 100 N ( up to 1000 m/min line speed )
max. 80 N ( from 1000 to 1500 m/min line speed )
■ Product diameter range 0,5 – 4,5 m

Controlled by Siemens S7 PLC
