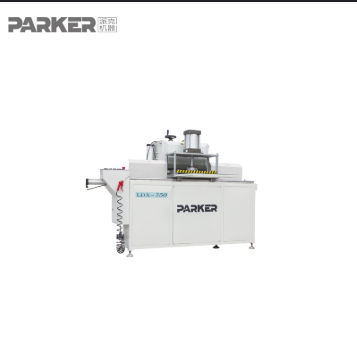

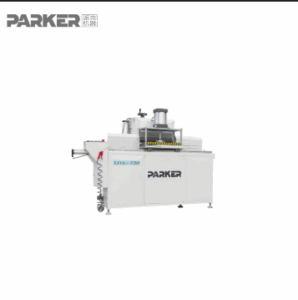

Parker Machniery Co., Ltd - Generic equipment - Milling machine for aluminum profiles LDX-350

Parker Machniery Co., Ltd – Generic equipment – Milling machine for aluminum profiles LDX-350

Technical Parameters

  • Voltage: 380V, 50Hz
  • Motor Power: 2.2KW
  • Motor Adjusted Travel: 0–80 mm
  • Supporting Profile Operating Platform Travel: 0–1050 mm
  • Platform Size: 530 × 320 mm
  • Air Pressure: 0.5–0.8 MPa
  • Blade Specification: Ф350 × 430 × 3.22, 100, 4250 × 32 × 6.52 = 40
  • Rotary Speed: 2800 r/min
  • Surface Roughness: Ra 12.5 µm
  • Overall Dimensions: 2700 mm × 1250 mm × 1900 mm
  • Weight: 1000 kg
SKU: 3139 Category:
The item has not been assessed for digitalization/automation

Description

Technical Parameters

  • Voltage: 380V, 50Hz
  • Motor Power: 2.2KW
  • Motor Adjusted Travel: 0–80 mm
  • Supporting Profile Operating Platform Travel: 0–1050 mm
  • Platform Size: 530 × 320 mm
  • Air Pressure: 0.5–0.8 MPa
  • Blade Specification: Ф350 × 430 × 3.22, 100, 4250 × 32 × 6.52 = 40
  • Rotary Speed: 2800 r/min
  • Surface Roughness: Ra 12.5 µm
  • Overall Dimensions: 2700 mm × 1250 mm × 1900 mm
  • Weight: 1000 kg
