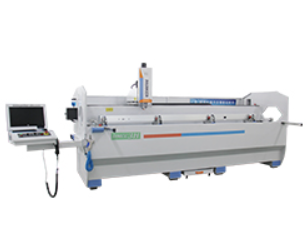

Parker Machniery Co., Ltd – Generic equipment – CNC machining center for aluminum profiles DMCC3H-2500

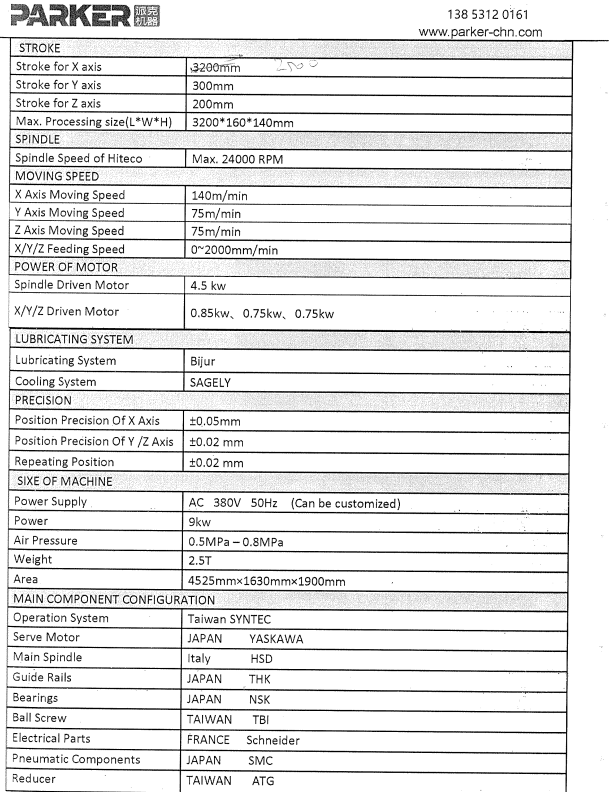

Description

Stroke (Travel Range)

• X Axis Stroke: 3200 mm
• Y Axis Stroke: 2500 mm
• Z Axis Stroke: 300 mm
• Max. Processing Size (L × W × H): 3200 × 160 × 140 mm

---

Spindle

• Spindle Brand: Hiteco
• Max Spindle Speed: 24,000 RPM
• Spindle Motor Power: 4.5 kW

---

Moving Speed

• X Axis Moving Speed: 140 m/min
• Y Axis Moving Speed: 75 m/min
• Z Axis Moving Speed: 75 m/min
• X/Y/Z Feeding Speed: 0–2000 mm/min

---

Motor Power

• X/Y/Z Driven Motors: 0.85 kW, 0.75 kW, 0.75 kW

---

Lubrication & Cooling

• Lubricating System: Bijur
• Cooling System: SAGELY

---

Precision

• Position Precision (X Axis): ±0.05 mm
• Position Precision (Y/Z Axis): ±0.02 mm
• Repeat Positioning Accuracy: ±0.02 mm

---

Machine Size & Power

• Power Supply: AC 380V, 50Hz (customizable)
• Total Power: 9 kW
• Air Pressure: 0.5–0.8 MPa
• Machine Dimensions: 4525 mm × 1630 mm × 1900 mm
• Weight: 2.5 T

---

Main Component Configuration

• Operation System: Taiwan SYNTEC
• Servo Motor: Japan YASKAWA
• Main Spindle: Italy HSD
• Guide Rails: Japan THK
• Bearings: Japan NSK
• Ball Screw: Taiwan TBI
• Electrical Parts: France Schneider
• Pneumatic Components: Japan SMC
• Reducer: Taiwan ATG
