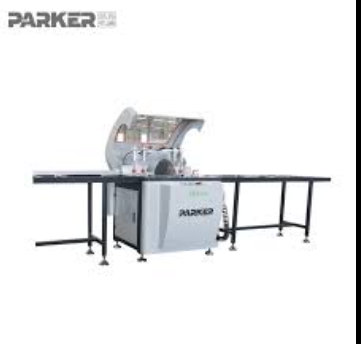

Parker Machniery Co., Ltd – Generic equipment – CNC machines for cutting aluminum moldings for glazing LYT-CNC90

Description

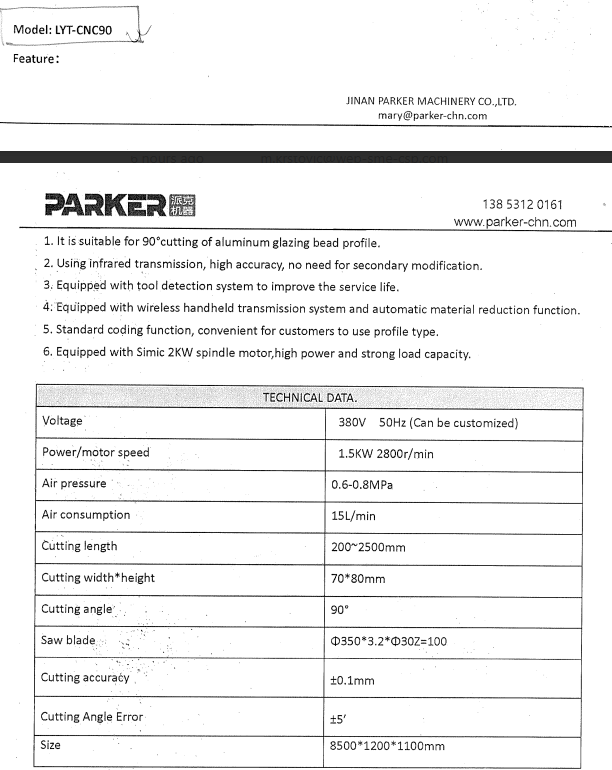

Technical Specifications

• Voltage: 380V, 50Hz (customizable)
• Power / Motor Speed: 1.5KW, 2800 r/min
• Air Pressure: 0.6–0.8 MPa
• Air Consumption: 15 L/min

Cutting Specifications

• Cutting Length: 200–2500 mm
• Cutting Width × Height: 70 × 80 mm
• Cutting Angle: 90°
• Saw Blade: F350 × 3.2 × 030, Z=100
• Cutting Accuracy: ±0.1 mm
• Cutting Angle Error: ±5′ (minutes)

Machine Dimensions

• Size: 8500 mm × 1200 mm × 1100 mm
