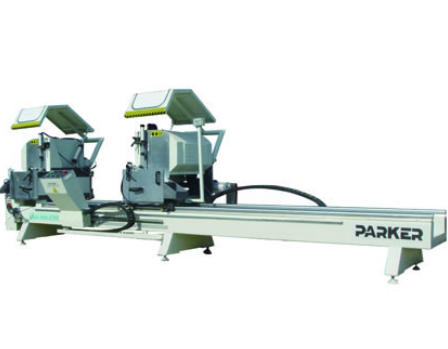

Parker Machniery Co., Ltd – Double-headed saw for aluminum with digital display LJZ2S-500X5000

Description

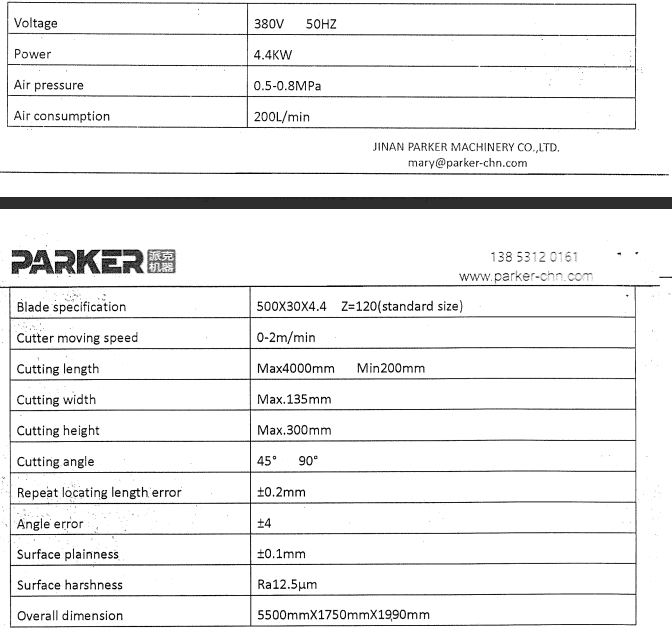

Technical Specifications

• Voltage: 380V, 50Hz
• Power: 5KW
• Air Pressure: 0.5–0.8 MPa
• Air Consumption: 200 L/min

Cutting Specifications

• Blade Specification: 500 × 30 × 4.4, Z=120 (standard size)
• Cutter Moving Speed: 0–2 m/min
• Cutting Length: Max 4000 mm, Min 200 mm
• Cutting Width: Max 135 mm
• Cutting Height: Max 300 mm
• Cutting Angles: 45°, 90°

Precision & Surface Quality

• Repeat Locating Length Error: ±0.2 mm
• Angle Error: ±4°
• Surface Plainness: ±0.1 mm
• Surface Harshness: Ra 12.5 µm

Machine Dimensions

• Overall Dimensions: 5500 mm × 1750 mm × 1990 mm
