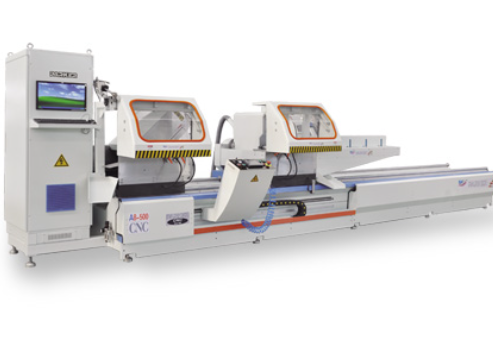

Parker Machniery Co., Ltd – CNC double-headed saws for aluminum E550
0,00€
Technical Parameters
- Voltage: 380V, 50Hz (customizable)
- Power: 6KW
- Air Pressure: 0.5–0.8 MPa
- Air Consumption: 200 L/min
Cutting Specifications
- Blade Specification: 550 × 30 × 4.4, Z=120 (standard size)
- Cutting Length: 500 mm – 4200 mm
- Cutting Width: Max 180 mm
- Cutting Height: Max 300 mm
- Cutting Angles: 45°, 90°
Precision & Surface Quality
- Repeat Locating Length Error: ±0.2 mm
- Cutting Angle Error: ±4°
- Surface Plainness: ±0.1 mm
- Surface Roughness: Ra 12.5 µm
Machine Dimensions & Weight
- Overall Dimensions: 6000 mm × 1320 mm × 1600 mm
- Weight: 1600 kg
Out of stock
