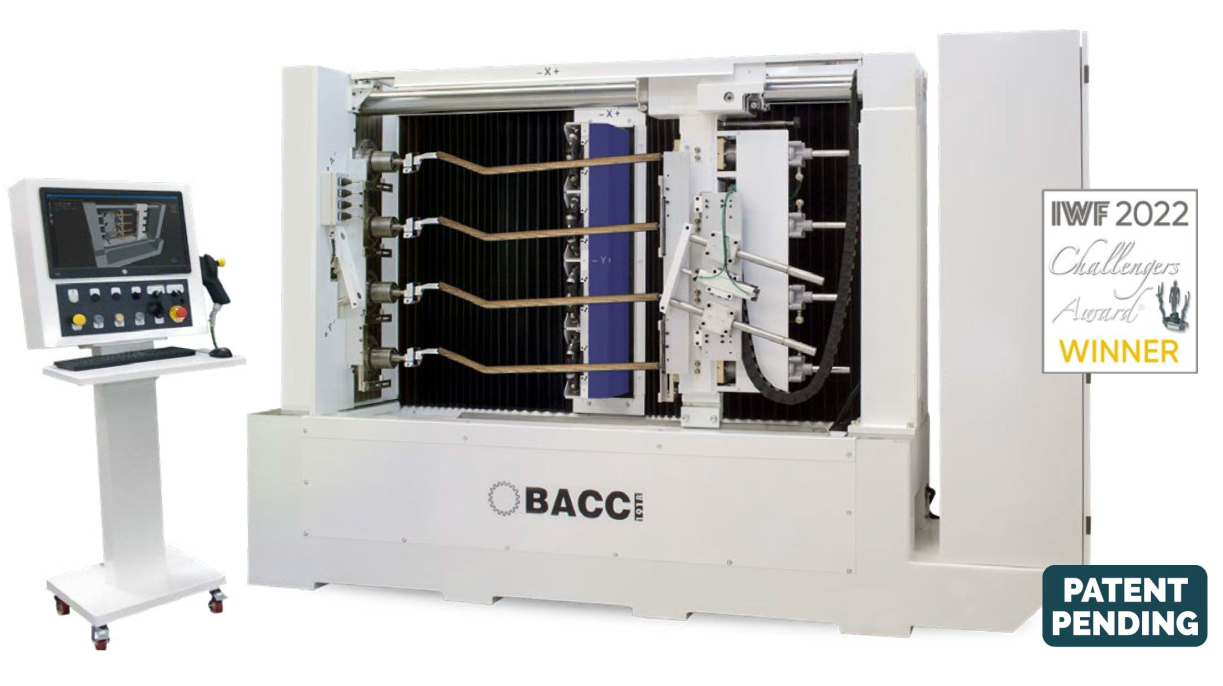

Paolino Bacci Srl – CNC LATHE WITH 4 HORIZONTAL SPINDLES – T4MO CNC PLUS

0,00€

Technical Sheet:

Min. copying radius mm. 20,00
– Bell knives diameter mm. 35,0
– Bell cutters holder diameter mm. 250
– Max. working length mm. 1250
– Max. working diameter mm. 250
– C/C distance between spindles mm. 270
– Max. spindle rotation speed RPM 100
– Motor power of cutter-holder carriage HP 2×7,5
– Weight Kg 6500
– Dimension (including dust-proof cabin) 5500Wx2400Lx3100H
– Total power installed Kw 51
– Absorbed power Kw 38
– Air consumption Nl/min 700



Basic configuration complete with :



– Nr.4 Right-hand bell cutters holders (for diameter 35mm)
– Nr.2 Left-hand bell cutters holders (for diameter 35mm)
– N° 48 bell cutters knives included.
– Nr.1 license for Bacci CAM system (2 USB keys)
– Dust proof cabin included according with CE safety rules
– Internal tank for dust evacuation.
– Lifetime teleservice support free of charge included



VOLTAGE: 380 Volts +/- 5% (or different voltage depending on destination country)
FREQUENCY: 50Hz (or 60Hz)

Out of stock

SKU: 3234 Category:
The item has not been assessed for digitalization/automation

Description

Technical Sheet:

Min. copying radius mm. 20,00
– Bell knives diameter mm. 35,0
– Bell cutters holder diameter mm. 250
– Max. working length mm. 1250
– Max. working diameter mm. 250
– C/C distance between spindles mm. 270
– Max. spindle rotation speed RPM 100
– Motor power of cutter-holder carriage HP 2×7,5
– Weight Kg 6500
– Dimension (including dust-proof cabin) 5500Wx2400Lx3100H
– Total power installed Kw 51
– Absorbed power Kw 38
– Air consumption Nl/min 700



Basic configuration complete with :



– Nr.4 Right-hand bell cutters holders (for diameter 35mm)
– Nr.2 Left-hand bell cutters holders (for diameter 35mm)
– N° 48 bell cutters knives included.
– Nr.1 license for Bacci CAM system (2 USB keys)
– Dust proof cabin included according with CE safety rules
– Internal tank for dust evacuation.
– Lifetime teleservice support free of charge included



VOLTAGE: 380 Volts +/- 5% (or different voltage depending on destination country)
FREQUENCY: 50Hz (or 60Hz)
