Description

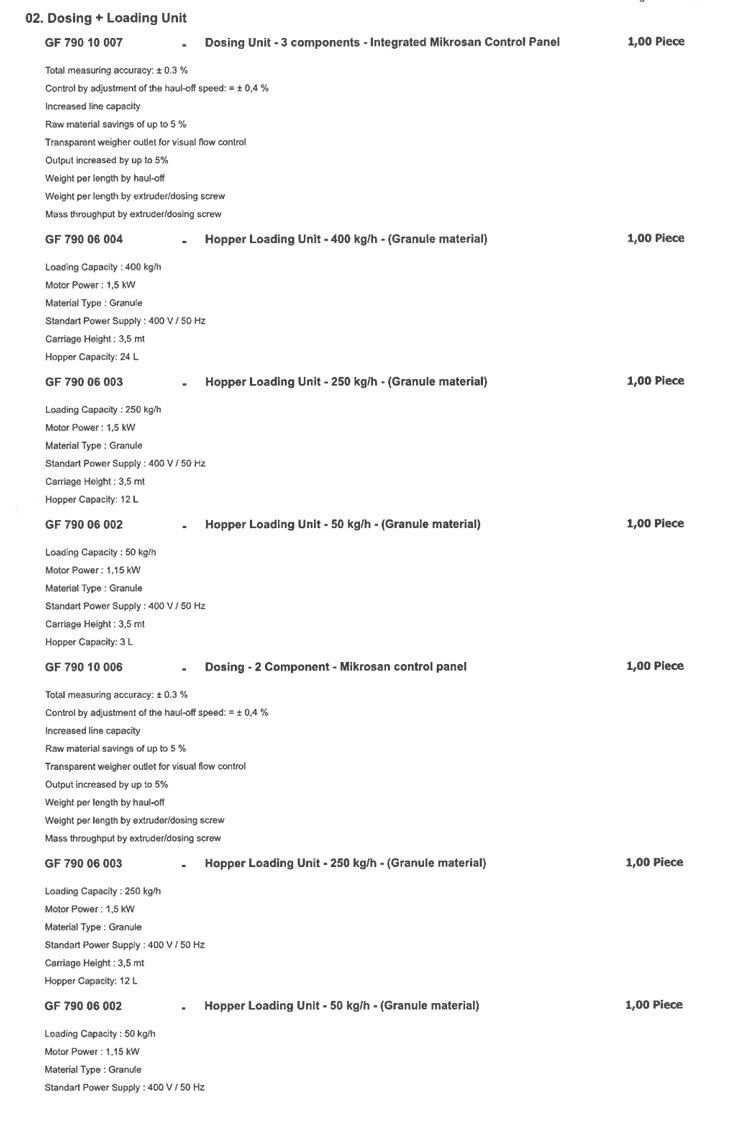

Dosing Unit – 3 Components (Integrated Mikrosan Control Panel)
- Gravimetric dosing system for up to 3 material components
- Total measuring accuracy: ± 0.3%
- Automatic control via haul-off speed adjustment (± 0.4%)
- Increased line capacity and process stability
- Raw material savings up to 5%
- Transparent weighing hopper for visual flow monitoring
- Output increase up to 5%
- Weight per meter control via haul-off and extruder/dosing screw
- Continuous mass throughput monitoring
Dosing Unit – 2 Components (Mikrosan Control Panel)
- Gravimetric dosing system for 2 material components
- Total measuring accuracy: ± 0.3%
- Automatic adjustment based on haul-off speed (± 0.4%)
- Increased production efficiency
- Material consumption optimization up to 5%
- Transparent weighing system for process visibility
- Output increase up to 5%
- Weight per meter control via haul-off and extruder/dosing screw
- Real-time throughput measurement
Hopper Loading Unit – 400 kg/h (Granule material)
- Loading capacity: 400 kg/h
- Motor power: 1.5 kW
- Power supply: 400 V / 50 Hz
- Hopper capacity: 24 L
- Carriage height: 3.5 m
Hopper Loading Unit – 250 kg/h (Granule material)
- Loading capacity: 250 kg/h
- Motor power: 1.5 kW
- Power supply: 400 V / 50 Hz
- Hopper capacity: 12 L
- Carriage height: 3.5 m
Hopper Loading Unit – 50 kg/h (Granule material)
- Loading capacity: 50 kg/h
- Motor power: 1.15 kW
- Power supply: 400 V / 50 Hz
- Hopper capacity: 3 L
- Carriage height: 3.5 m
