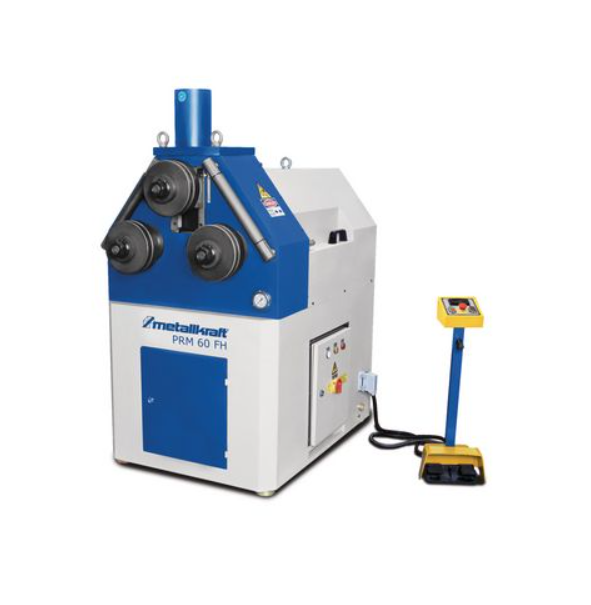

| Square material dimensions [1] |
50 mm |
| Square material min. bending Ø [1] |
800 mm |
| Square material dimensions [2] |
20 mm |
| Square material min. bending Ø [2] |
400 mm |
| Flat material light axis dimensions bending Ø [1] |
120 x 25 mm |
| Flat material light axis min. bending Ø [1] |
600 mm |
| Flat material light axis dimensions bending Ø [2] |
50 x 10 mm |
| Flat material light axis min. bending Ø [2] |
400 mm |
| Flat material heavy axis dimensions bending Ø [1] |
80 x 20 mm |
| Flat material heavy axis min. bending Ø [1] |
1200 mm |
| Flat material heavy axis dimensions bending Ø [2] |
40 x 10 mm |
| Flat material heavy axis min. bending Ø [2] |
400 mm |
| UPN profile top rib dimensions [1] |
80 x 9 mm |
| T profile top rib min. bending Ø [1] |
1000 mm |
| UPN profile top rib dimensions [2] |
40 x 5 mm |
| T profile top rib min. bending Ø [2] |
400 mm |
| Explanation for T profile rib above |
Additional spacers may be required |
| UPN profile outside rib dimensions [1] |
80 x 9 mm |
| T profile outside rib min. bending Ø [1] |
1000 mm |
| UPN profile outside rib dimensions [2] |
40 x 5 mm |
| T profile outside rib min. bending Ø [2] |
400 mm |
| UPN profile inside rib dimensions [1] |
80 x 9 mm |
| T profile inside rib min. bending Ø [1] |
1200 mm |
| UPN profile inside rib dimensions [2] |
40 x 5 mm |
| T profile inside rib min. bending Ø [2] |
500 mm |
| UPN profile outside leg dimensions [1] |
UPN 120 |
| UPN profile outside leg min. bending Ø [1] |
800 mm |
| UPN profile outside leg dimensions [2] |
UPN 60 |
| UPN profile outside leg min. bending Ø [2] |
500 mm |
| UPN profile inside leg dimensions [1] |
UPN 120 |
| UPN profile inside leg min. bending Ø [1] |
1200 mm |
| UPN profile inside leg dimensions [2] |
UPN 60 |
| Inside leg min. bending Ø [2] |
600 mm |
| Explanations for bending performance, profile type standard |
The performance data apply to material with a max. Yield strength of 24kg / mm². Bending power at VA: factor 0.7 |
