ÖZERKILIÇ MAKINE SANAY TICARET VE LTD STI . LONGITUDINAL TIMBER TRANFER PNEUMATIC MOVEMENT WITH FLAG – (7MT. ÖE-BKGH)

Description

Loading...

Taking too long?

Reload document

| Open in new tab

Download [91.88 KB]

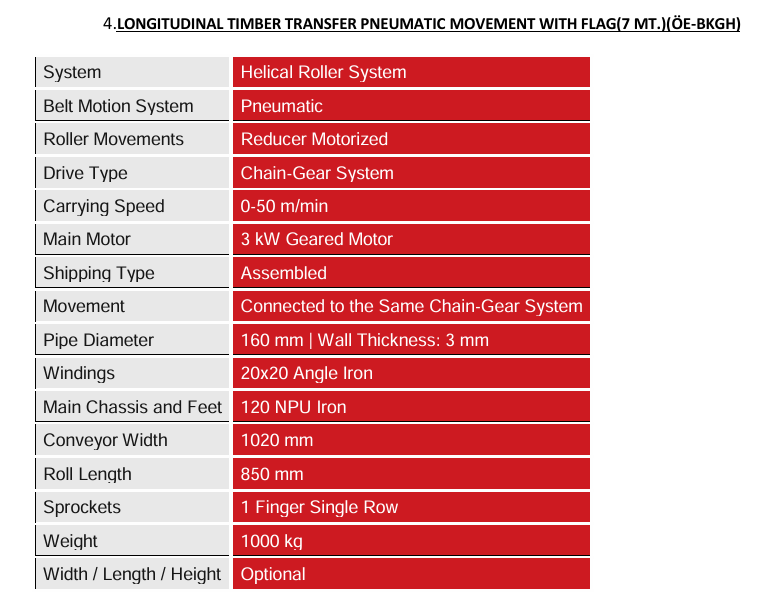

Technical Specifications:

System: Helical roller system
Belt motion system: Pneumatic
Roller movements: Reducer motorized
Drive type: Chain-gear system
Carrying speed: 0–50 m/min
Main motor: 3 kW geared motor
Shipping type: Assembled
Movement: Connected to the same chain-gear system
Pipe diameter: 160 mm
Pipe wall thickness: 3 mm
Windings: 20 × 20 angle iron
Main chassis and feet: 120 NPU iron
Conveyor width: 1020 mm
Roll length: 850 mm
Sprockets: 1-finger single row
Weight: 1000 kg
Width / Length / Height: Optional
Eligible for automation only if connected to the PLC of 3 BOOT REMOTE CONTROL HEAVY TYPELOG CAR (ÖE-UKTA-100)
