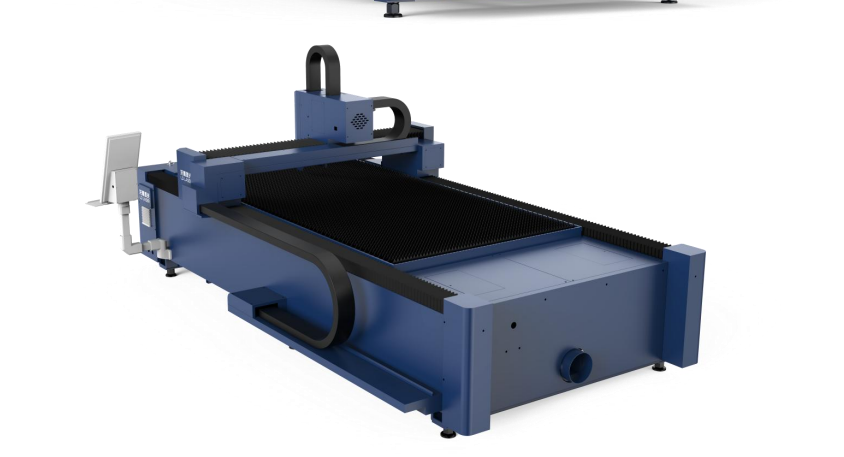

Description

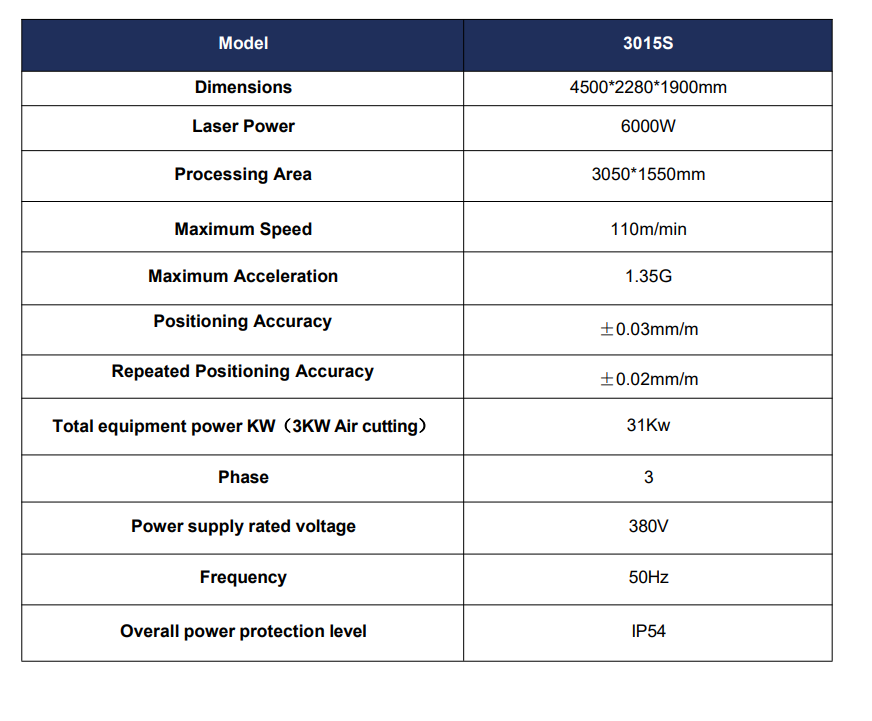

Technical Sheet:
- Dimensions: 4500 × 2280 × 1900 mm
- Laser Power: 6000 W (Raycus Global Service Version)
- Processing Area: 3050 × 1550 mm
- Maximum Speed: 110 m/min
- Maximum Acceleration: 1.35 G
- Positioning Accuracy: ±0.03 mm/m
- Repeated Positioning Accuracy: ±0.02 mm/m
- Total Equipment Power: 31 kW (including 3 kW air cutting)
- Power Supply: 380 V, 50 Hz, 3-phase
- Protection Level: IP54
