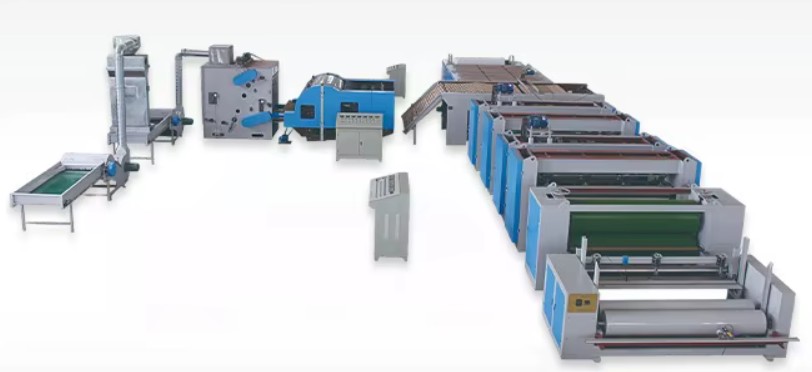

Langxi Zhenai Machinery Co. Ltd. – Production Line – Needle Punching Wadding

Description

Technical Specifications:

1. Cross Lapper (HFJ-250)

• Working weight: 80–1000 g/m²
• Input width: 2200 mm; Output width: 7500 mm
• Output speed: 1–12 m/min (adjustable)
• Net curtain speed: 20–40 m/min
• Web uniformity: ≤ 5%
• Power: 6 kW

2. Feeding Machine (WRJ-1)

• Width: 7500 mm
• Mobile clamping feeding with leather curtain

3. Pre-Needle Punching Machine (TYYC-1000)

• Width: 7200 mm
• Needle density: 5,400 needles/m
• Machine size: approx. 8 × 1.65 × 2.2 m
• Seamless steel rollers (Ø203 mm)
• CNC-machined needle boards
• Variable frequency drive
• Power: 39.6 kW

4. High-Speed Down-Stroke Needle Machine (TYXC-1000)

• Width: 6800 mm
• Needle density: 7,200 needles/m
• INA bearings (Germany)
• Dual-pump oil lubrication system
• CNC needle boards (5 interchangeable)
• Alarm system (air/oil monitoring)
• Power: 30 kW

5. High-Speed Up-Stroke Needle Machine (TYSC-1000)

• Power: 30 kW

6. Cutting & Rolling Machine (JRJ-3)

• Width: 6800 mm
• Power: 2.2 kW + 1.5 kW

7. Waste Opening Machine (HFK-3000)
