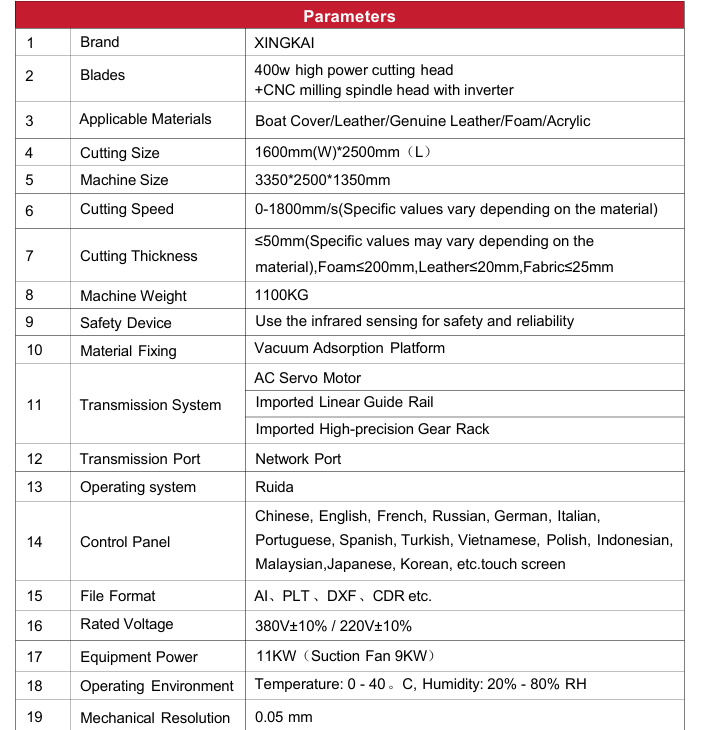

Technical Sheet:
Brand: XINGKAI

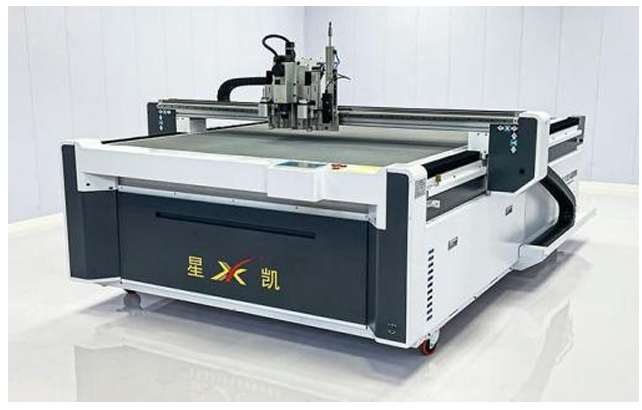

Machine type: CNC knife cutter with milling capability
Cutting head: 400 W high-power cutting head
Additional head: CNC milling spindle head with inverter
Applicable materials: Boat cover, leather, genuine leather, foam, acrylic
Working area: 1,600 mm × 2,500 mm
Machine dimensions: 3,350 × 2,500 × 1,350 mm
Cutting speed: 0-1,800 mm/s (depending on material)
Maximum cutting thickness: ≤ 50 mm
Foam: ≤ 200 mm
Leather: ≤ 20 mm
Fabric: ≤ 25 mm
Machine weight: 1,100 kg
Safety system: Infrared sensing safety device
Material holding system: Vacuum adsorption platform
Drive system:
AC servo motor
Imported linear guide rails
Imported high-precision gear rack
Communication interface: Network port
Control system: Ruida operating system
User interface: Touchscreen control panel
Supported languages: Chinese, English, French, Russian, German, Italian, Portuguese, Spanish, Turkish, Vietnamese, Polish, Indonesian, Malaysian, Japanese, Korean, and others
Supported file formats: AI, PLT, DXF, CDR
Rated voltage: 380 V ±10% / 220 V ±10%
Installed power: 11 kW
Suction fan power: 9 kW
Operating conditions:
Temperature: 0-40°C
Relative humidity: 20%-80% RH
Mechanical resolution: 0.05 mm
