Description

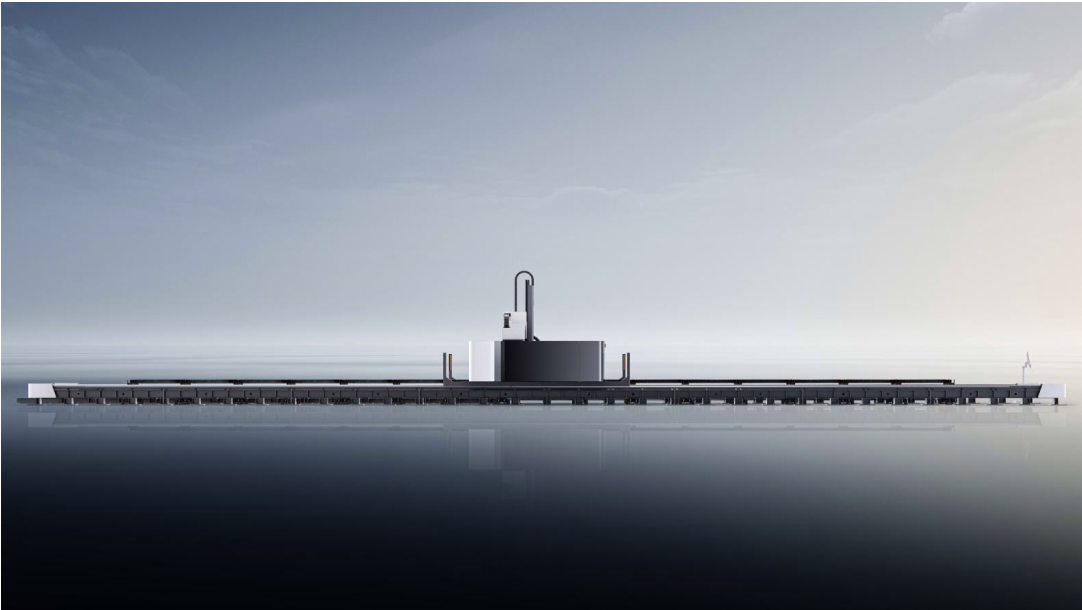

Technical Sheet:
Laser Power: 20 kW
Tube cross-sectional shape I-beam, H-beam,channel steel, angle steel
Tube size range
Beams：100mm×100mm-1500mm×600mm
Plate straight cutting: 3200mm×28000mm (width×length) Plate
bevel: 2800mm×28000mm (width×length)
Max. Profile length ≤28000mm(Profile:12.5m, Plate:9.2m)
Max. weight Beams:6T
Plate: 375kg/m2
Workpiece length ≤28000mm
Dimensions 33900mm×5030mm×4100mm
Overall weight 10500kg
