Jiangsu Faygo Union Machinery Co. Ltd. – PVC Corner Bead Line – SJSZ55/105

Description

Technical Sheet:

TOTAL POWER: 54.84 kW

Material Loader

• Charging capacity: 300 kg/h
• Pipe length: 4 m
• Material case volume: 150 kg
• Motor power: 1.5 kW
• Contact parts: Stainless steel

---

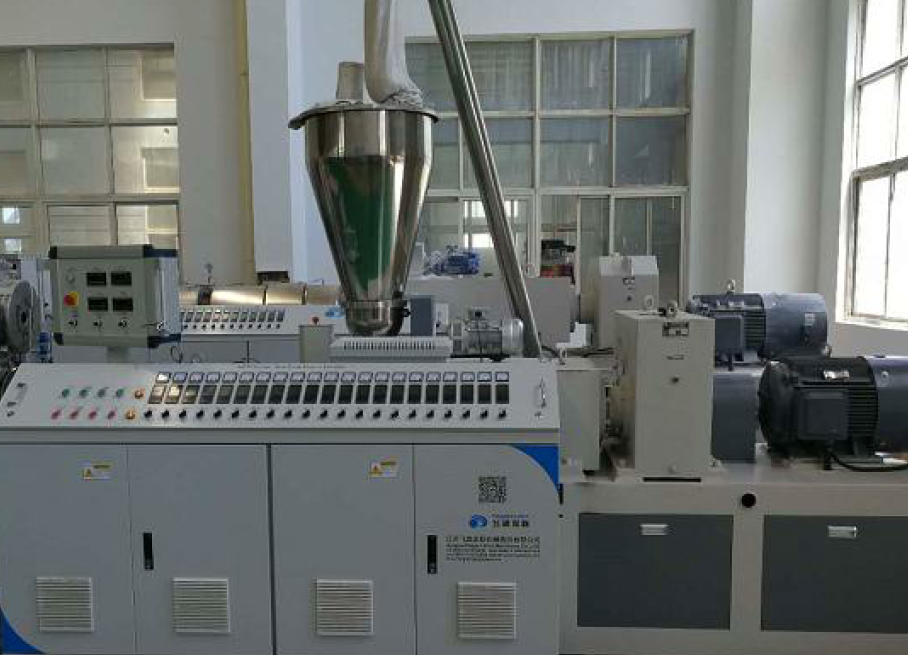

2. SJZ55/110 Conic Twin Screw Extruder

• Screw & Barrel:
  • Material: 38CrMoAlA, nitrided, chrome-plated
  • Diameter: Φ55/110 mm
  • Speed: 1–35 rpm
• Gearbox: DUOLING brand
• Main motor: 22 kW WEG motor + ABB inverter
• Heating:
  • Barrel: Aluminum heater, stainless steel cover
  • Power: 16 kW
  • Zones: 9 total (5 barrel + 4 mould)
• Cooling: Air force, 0.23 kW × 3 sets
• Vacuum exhaust: 2.2 kW water loop pump
• Capacity: 80–150 kg/h
• Electrical: OMRON temp control, Siemens contactor

---

3. Vacuum Calibration Table

• Dimensions: 4000 × 1100 × 1200 mm
• Vacuum pump: 4 kW
• Water pump: 4 kW
• Nozzles: 15 vacuum + 15 water
• Air drying: 0.75 kW motor
• Rails: Aluminum profile, adjustable 800 mm

---

4. Haul-off Machine

• Bracket length: 1500 mm
• Motor power: 1.1 kW × 2 pcs
• Speed: 0.3–6 m/min (adjustable via ABB inverter)
• Dimensions: 2600 × 1000 × 1700 mm

---

5. Punching Machine

• Method: Hydraulic
• Station power: 1.5 kW
• Speed: 1–8 m/min
• Mold block: Cr12MOV steel

---

6. Cutting Machine

• Mode: Pneumatic cylinder
• Blade: High-quality alloy steel
• Moving distance: 350 mm

---

7. Stacker

• Length: 4 m
• Material: 1.5 mm stainless steel board
• Dimensions: 4000 × 900 × 950 mm
