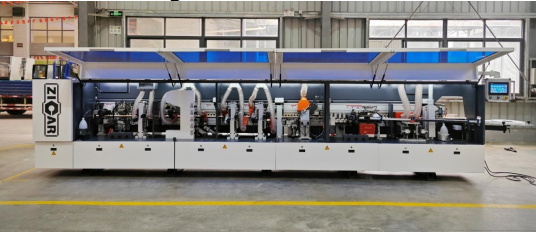

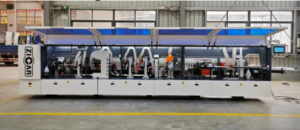

JAYA INTERNACIONAL CO.ltd. – Edge bander machine – NOVA 80

Description

Loading...

Taking too long?

Reload document

| Open in new tab

Download [580.77 KB]

Technical Sheet:

• Panel length (min): 150 mm
• Panel width (min): 40 mm
• Panel thickness: 10–60 mm
• Edge width: 12–65 mm
• Edge thickness: 0.4–3 mm
• Feeding speed: 15–23 m/min
• Voltage: 380 V, 3 phases
• Input frequency: 50 Hz
• Output frequency: 200 Hz
• Total power: 18.5 kW
• Air pressure: 0.6 MPa
• Machine size: 7310 × 950 × 1600 mm
• Minimum panel size: 300(L) × 40(W) mm or 150(L) × 150(W) mm
• PLC: Delta
