Technical Sheet:

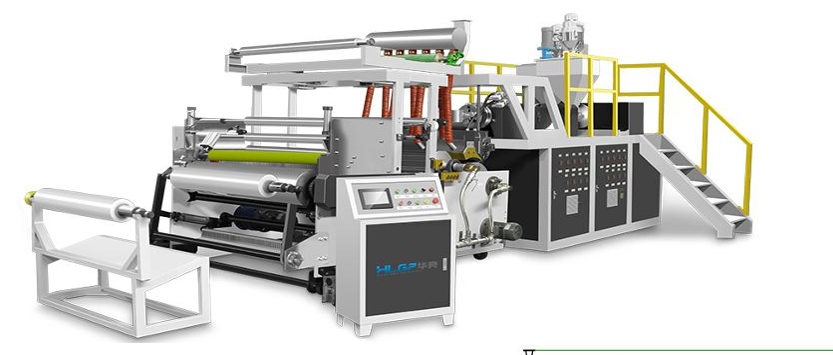

Fully automatic cast stretch film production line with automatic core changer and in-line recycling unit.
Product type: PE stretch film.
Film structure: AB or ABA multilayer film.
Finished film width: 1,000 mm (2 × 500 mm).
Film thickness range: 0.008–0.05 mm.
Raw material: LLDPE (Linear Low-Density Polyethylene).
Maximum extrusion capacity: 100–120 kg/h.
Maximum line speed: 120 m/min.
Power supply: 380 V, 50 Hz.
Total installed power: 100 kW.
Running power consumption: 60 kW.
Winding diameter: Ø350 mm.
Human-machine interface: 10-inch touchscreen.
Degree of automation: Fully automatic.
Operation requirement: One-person operation.
Machine dimensions: 10,300 × 4,200 × 2,800 mm.
Equipment weight: approximately 6.5 tonnes.
PLC：XINJIE
