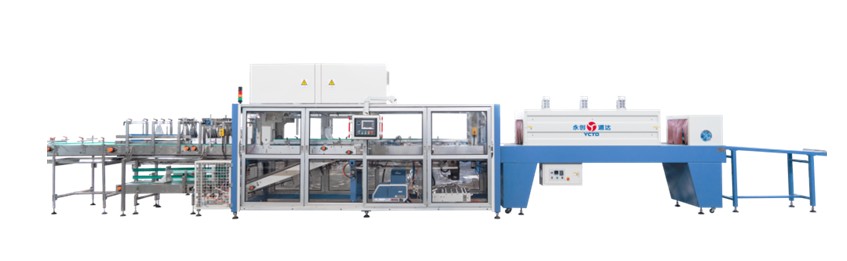

Hebei Y.C.T.D. Packaging Machinery CO.. – Heat shrink film packaging machine – YCBS20ZT

Description

Technical Specifications:

Packaging capacity and combination: 330ml cans 3 * 5
Working voltage: three-phase five wire system 380V/50Hz
Control voltage: DC24V
Compressed air: Pressure 0.6-0.8Mpa (No oil and no water)
Gas consumption: 300-400NL/min
Tracheal joint size: Φ12mm
Packaging speed: 15-18 packs/minute
Contraction chamber: L × W × H=2400 × 650 × 450 (mm); Temperature: 130 ℃~230 ℃
Packaging material: LDPE (dust removal, static electricity removal, film surface static electricity: ≤) 4000esu；Non color printing surface dynamic friction coefficient ≥ 0.3; Stretching rate of 300-450%)
Film roll width: ≤ 580mm
Film thickness: 0.07-0.10mm
Film roll diameter: ≤ 300mm
Cardboard requirements: Three layer corrugated paper, with a flat surface and a thickness of ≥ 3mm, and a surface flatness of ≤ 5mm
Work noise: ≤ 80dB
Installed capacity: 53KW, average power: 34KW
Total weight: 5000kg
