Technical Sheet:

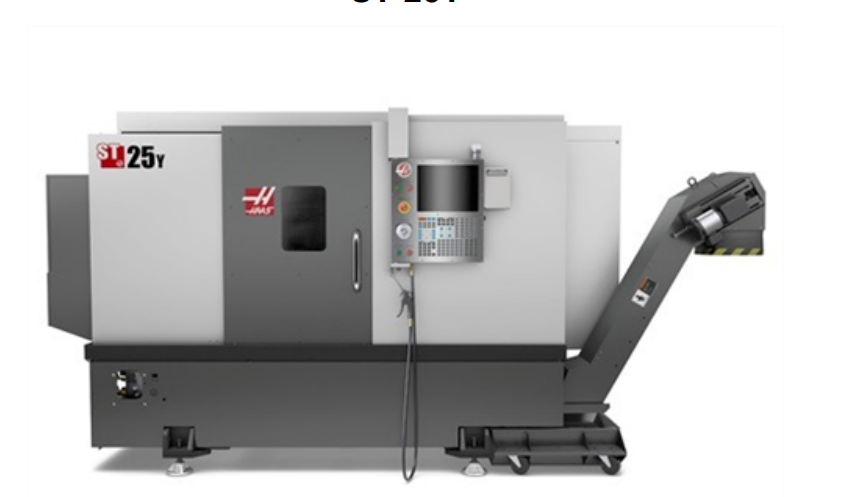

- CNC lathe with Y-axis
- Capacity: 11.75″ × 22.5″ (298 × 572 mm)
- Maximum spindle bore: 3″ (76 mm)
- Bar Capacity: 3.00 in (76 mm)
- Maximum part swing: 21.0 in (533 mm)
- Maximum cutting diameter (with BMT65 turret): 11.75 in (298 mm)
- Maximum cutting length (varies with workholding): 22.5 in (572 mm)
- Control type: Interpolated motion & positioning CNC
- Input voltage (3-phase low): 220 VAC, 70 A full-load
- Input voltage (3-phase high): 440 VAC, 35 A full-load
- Spindle power consumption is tied to the 30 hp (22.4 kW) spindle rating above.
