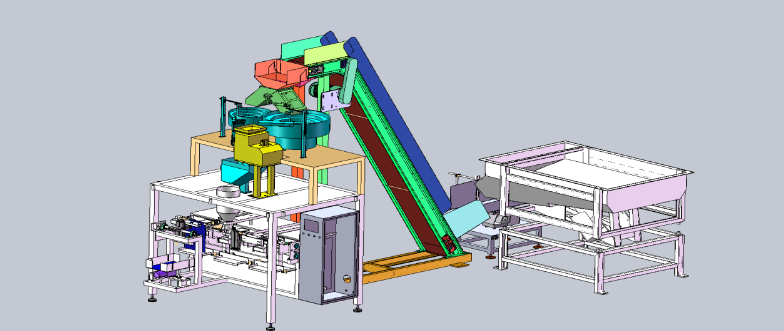

Guangzhou Xindefu Intelligent Equipment Co. Ltd – Automatic packaging machine – FG-200

Name: Guangzhou Xindefu Intelligent Equipment Co. Ltd - Automatic packaging machine - FG-200
SKU: 3827
Availability: OutOfStock

0,00€

Taking too long?

Reload document

Technical Sheet:

Fully automated multi-station process: Integrated workflow covering bag feeding, opening, date printing, filling, vibration, heat sealing, and final shaping/output, ensuring consistent and high-quality packaging.
Packaging capacity & flexibility: Handles pre-made pouches (stand-up, four-side seal, etc.) with sizes from 100–300 mm (L) and 80–230 mm (W), and a weighing range of 100 g to 2 kg, suitable for various granular materials including nails (10–100 mm length).
Performance & accuracy: Operating speed of 3–8 bags/min depending on material and film, with weighing accuracy of ±2–5 g, ensuring reliable dosing and minimal product loss.
Power consumption & utilities: Total installed power of 2.5 kW at 220 V (50/60 Hz), with compressed air requirements of 0.8 MPa and 0.3 m³/min, plus an air compressor capacity ≥ 1 m³.
Control system & automation: Advanced PLC with touch-screen HMI (POD) enables easy operation, diagnostics, optional remote troubleshooting, and quick format change (e.g., one-key bag width adjustment).
Safety, reliability & build quality: Equipped with automatic alarms, safety protections, modular heating control, and high-quality branded components; compliant with international safety and hygiene standards for stable, low-failure operation

Out of stock

SKU: 3827 Category: Processing Equipment

The item has been assessed for digitalization/automation

Description

Taking too long?

Reload document

Technical Sheet:

Fully automated multi-station process: Integrated workflow covering bag feeding, opening, date printing, filling, vibration, heat sealing, and final shaping/output, ensuring consistent and high-quality packaging.
Packaging capacity & flexibility: Handles pre-made pouches (stand-up, four-side seal, etc.) with sizes from 100–300 mm (L) and 80–230 mm (W), and a weighing range of 100 g to 2 kg, suitable for various granular materials including nails (10–100 mm length).
Performance & accuracy: Operating speed of 3–8 bags/min depending on material and film, with weighing accuracy of ±2–5 g, ensuring reliable dosing and minimal product loss.
Power consumption & utilities: Total installed power of 2.5 kW at 220 V (50/60 Hz), with compressed air requirements of 0.8 MPa and 0.3 m³/min, plus an air compressor capacity ≥ 1 m³.
Control system & automation: Advanced PLC with touch-screen HMI (POD) enables easy operation, diagnostics, optional remote troubleshooting, and quick format change (e.g., one-key bag width adjustment).
Safety, reliability & build quality: Equipped with automatic alarms, safety protections, modular heating control, and high-quality branded components; compliant with international safety and hygiene standards for stable, low-failure operation.
