Guangzhou Auctech Automation Technology Ltd – Generic equipment – AHP-500-3150

Description

Loading...

Taking too long?

Reload document

| Open in new tab

Download [115.78 KB]

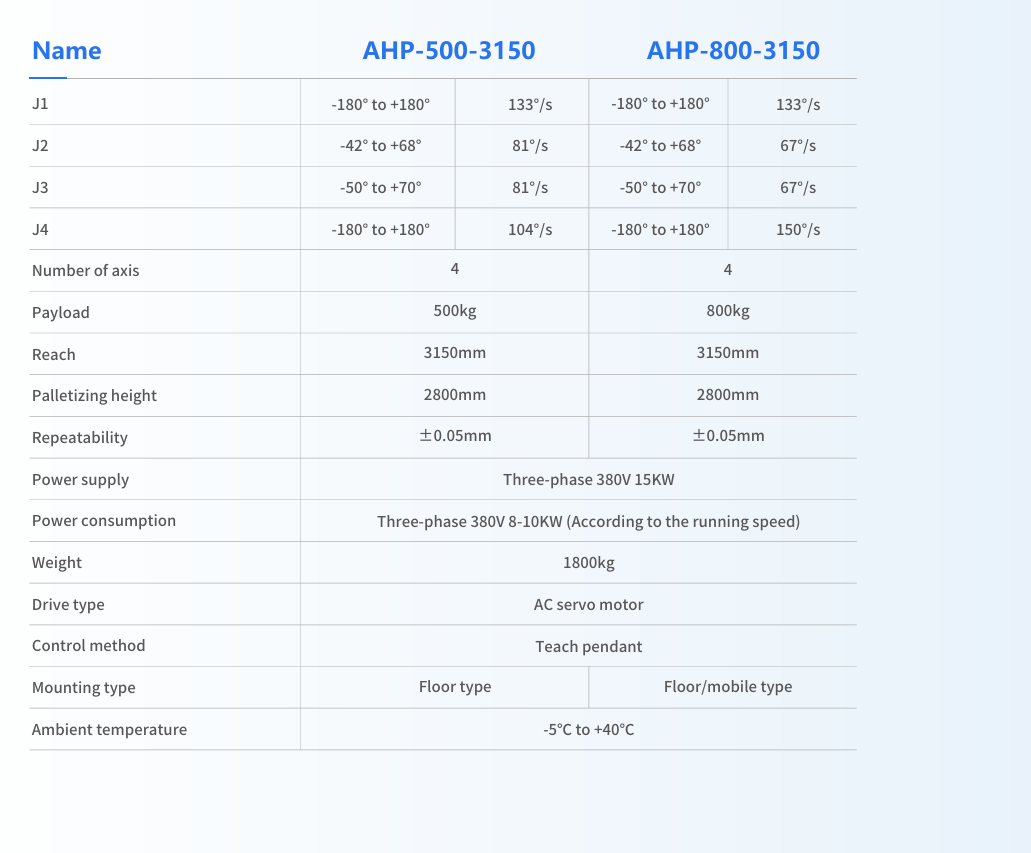

Technical sheet:

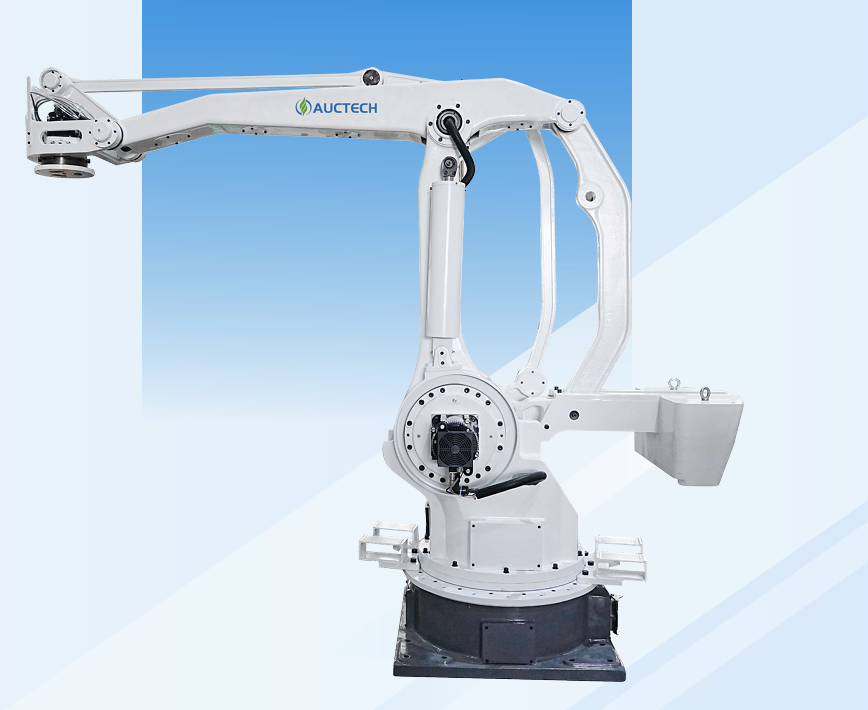

Robot type: 4-axis palletizing robot
Payload capacity: 500 kg
Maximum reach: 3,150 mm
Maximum palletizing height: 2,800 mm
Repeatability: ±0.05 mm
Power supply: Three-phase 380 V, 15 kW
Power consumption: 8-10 kW (depending on operating speed)
Weight: 1,800 kg
Drive system: AC servo motors
Control method: Teach pendant
Mounting type: Floor-mounted
Operating temperature: -5°C to +40°C
