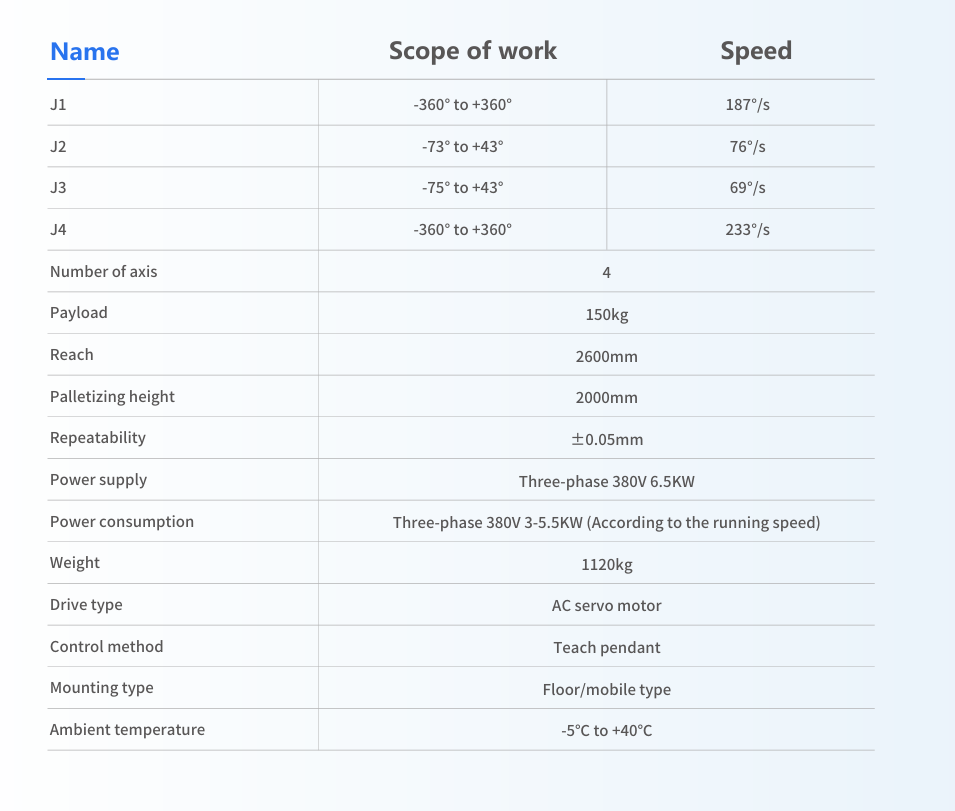

Technical Data:

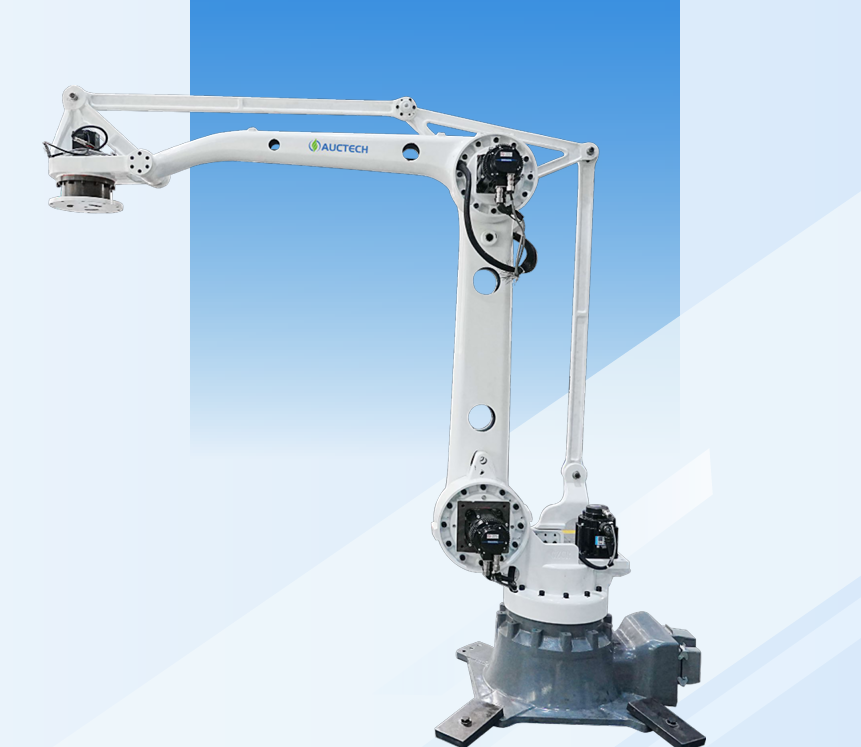

Robot type: 4-axis palletizing robot
Payload capacity: 150 kg
Maximum reach: 2,600 mm
Maximum palletizing height: 2,000 mm
Repeatability: ±0.05 mm
Power supply: Three-phase 380 V, 6.5 kW
Power consumption: 3-5.5 kW (depending on operating speed)
Weight: 1,120 kg
Drive system: AC servo motors
Control method: Teach pendant
Mounting type: Floor-mounted/mobile
Operating temperature: -5°C to +40°C
