Description

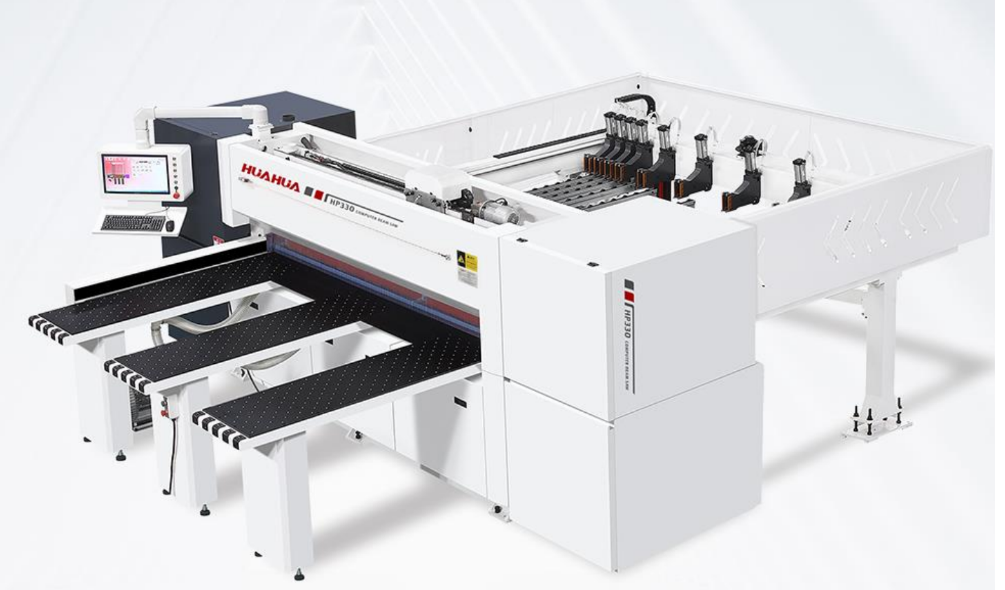

Technical Sheet:
- Material feed length: 3300 mm
- Material cutting width: 3300 mm
- Saw height: 90 mm
- Main saw blade diameter: Ø380 mm
- Main saw blade speed: 4100 rpm
- Scoring blade diameter: Ø200 mm
- Scoring blade speed: 6200 rpm
- Scoring unit motor: 2.2 kW
- Saw carriage drive motor: 1.5 kW (AC Servo)
- Pusher drive motor: 1.5 kW (AC Servo)
- Pressure beam motors: 1.5 kW + 2.2 kW
- Total power: 28 kW
- Air pressure requirement: 6–7 kg/cm²
- Working table height from ground: 980 mm
- Machine dimensions: 6560 × 5740 × 2060 mm
