Guangdong Rich Packing Machinery – Bottle Counting and Filling Line Machines – 16H

0,00€


Technical sheet

Total installed power of the components for which power is specified: 7.85 kW

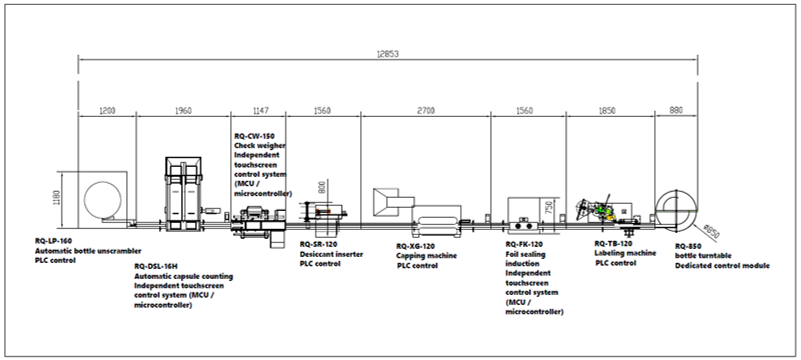

Component Function Height Length Weight Power Supply Power
RQ-LP-160 – Automatic Bottle Unscrambler Automatic bottle sorting and unscrambling 1,280 mm 1,080 mm 320 kg 220/380 V – 50/60 Hz 0.25 kW
RQ-DSL-16H – 16-Lane Tablet/Capsule Counting Machine Counting and filling tablets, capsules, soft capsules and pills 1,650 mm 1,360 mm 550 kg 220 V – 50 Hz 1.20 kW
RQ-SG-150 – Check Weigher Automatic weight checking and weight-limit control 1,420 mm 1,150 mm 60 kg 220 V – 50 Hz 0.10 kW
RQ-SR-120 – Automatic Desiccant Inserter Automatic cutting and insertion of desiccant bags 1,900 mm 1,150 mm 300 kg 220/380 V – 50/60 Hz 0.50 kW
RQ-XG-120 – Automatic Cap Feeder & Capper Automatic cap feeding and bottle capping 1,850 mm 2,350 mm 600 kg 220/380 V – 50/60 Hz 1.80 kW
RQ-FK-120 – Electromagnetic Induction Sealer Aluminium foil induction sealing 1,250 mm 680 mm 170 kg 220/380 V – 50/60 Hz 2.50 kW
RQ-TB-120 – Automatic Labeling Machine Automatic bottle labeling and batch/date printing 1,650 mm 2,000 mm 300 kg 220/380 V – 50/60 Hz 1.50 kW
RQ-850 – Bottle Collection Unit Collection of finished bottles N/A N/A N/A N/A N/A

Out of stock

SKU: 4103 Category:
The item has been assessed for digitalization/automation

Description


Technical sheet

Total installed power of the components for which power is specified: 7.85 kW

Component Function Height Length Weight Power Supply Power
RQ-LP-160 – Automatic Bottle Unscrambler Automatic bottle sorting and unscrambling 1,280 mm 1,080 mm 320 kg 220/380 V – 50/60 Hz 0.25 kW
RQ-DSL-16H – 16-Lane Tablet/Capsule Counting Machine Counting and filling tablets, capsules, soft capsules and pills 1,650 mm 1,360 mm 550 kg 220 V – 50 Hz 1.20 kW
RQ-SG-150 – Check Weigher Automatic weight checking and weight-limit control 1,420 mm 1,150 mm 60 kg 220 V – 50 Hz 0.10 kW
RQ-SR-120 – Automatic Desiccant Inserter Automatic cutting and insertion of desiccant bags 1,900 mm 1,150 mm 300 kg 220/380 V – 50/60 Hz 0.50 kW
RQ-XG-120 – Automatic Cap Feeder & Capper Automatic cap feeding and bottle capping 1,850 mm 2,350 mm 600 kg 220/380 V – 50/60 Hz 1.80 kW
RQ-FK-120 – Electromagnetic Induction Sealer Aluminium foil induction sealing 1,250 mm 680 mm 170 kg 220/380 V – 50/60 Hz 2.50 kW
RQ-TB-120 – Automatic Labeling Machine Automatic bottle labeling and batch/date printing 1,650 mm 2,000 mm 300 kg 220/380 V – 50/60 Hz 1.50 kW
RQ-850 – Bottle Collection Unit Collection of finished bottles N/A N/A N/A N/A N/A
