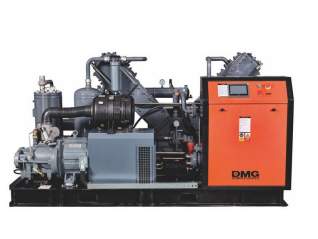

Guangdong DMG Compressor Co.,Lt HP AIR COMPRESSOR
Model lng LGV-8.0/40PM
Technical Specifications:
Method Water Cooling
Lubrication Method: Water lubricated in screw air end, Cylinder/packing oil-free
Compression Stages: 3
Flow Rate m3/min: 8
Inlet Pressure MPa(G): 0.1
Outlet Pressure MPa(G): 4
Intake temperature ℃ ≤40
Discharge temperature ℃ ≤50 After Cooling
Installed power KW 85
Speed r/min 580
Inlet and Outlet water pipe size MM 1 1
Air outlet pipe size MM DN40
Oil Pump Pressure MpaG: 0.2-0.4
Net Weight Kg 2480
Dimension mm 2800*1500*1500
Motor Power Screw55KW
Voltage: Piston 37KW 380V /50Hz Rotating
direction Clockwise by flywheel side.
