Guangdong DMG Compressor Co.,Lt – Air Compressor – LGV-12/40PM

Description

Technical Specifications:

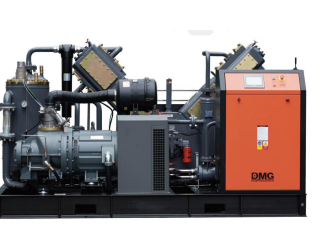

Air Compressor – LGV-12/40PM

Method Water Cooling
Lubrication Method: Water lubricated in screw air end, Cylinder/packing oil-free
Compression Stages 3
Flow Rate m3/min 12
Inlet Pressure MPa(G) 0.1
Outlet Pressure MPa(G) 4
Intake temperature ℃ ≤40
Discharge temperature ℃ ≤50 After Cooling
Installed power KW 112
Speed r/min 520
Inlet and Outlet water pipe size MM 1 1/2”

Air outlet pipesize MM DN40
Oil Pump Pressure MpaG 0.2-0.4
Net Weight Kg 3940
Dimension mm 3100*1850*1770
Motor Power Screw90KW
Voltage: Piston 45KW 380V /50Hz Rotating
direction Clockwise by flywheel sid
