Technical Sheet:
-

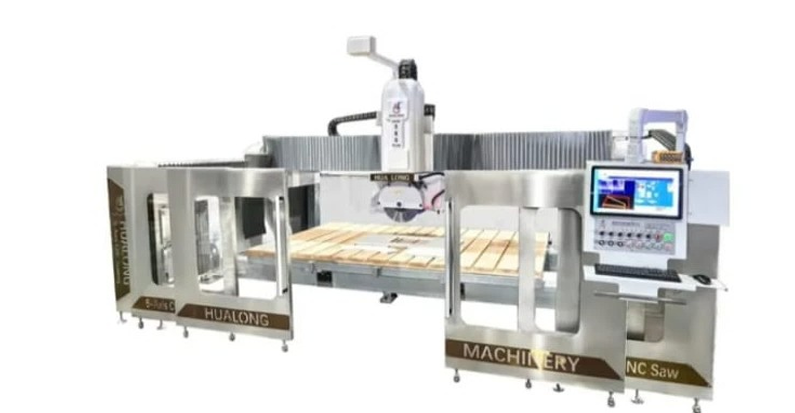

Machine type: Multifunctional CNC stone cutting, shaping & engraving; 5+1 axis interpolation control
-
Working platform: 3,500 × 2,100 mm; tilts up to 85° for easy slab loading
-
Cutting capacity: Max. cutting length 3,500 mm; max. cutting thickness 150 mm; saw blade ø400–ø560 mm
-
Spindle: Electric spindle, 0–24,000 rpm, 5.5 kW; blade rotates 0°–360°, tilts 90° for any angle chamfering
-
Power consumption: Gross power 32.5 kW; crossbeam motor 1.1 kW; hydraulic station 2.2 kW; lifting motor 0.85 kW
-
Control system: Italian ESA CNC with 19″ colour touch-screen; Zeus CAD/CAM software (Pegasus); digital servo motors
-
Linear guides: Hiwin (Taiwan) — high precision on crossbeam and carriage
-
Other data: Gross weight 5,900 kg; water consumption 2 m³/h; max. lifting weight by suction cups 200 kg; max. lifting stroke 300 mm
