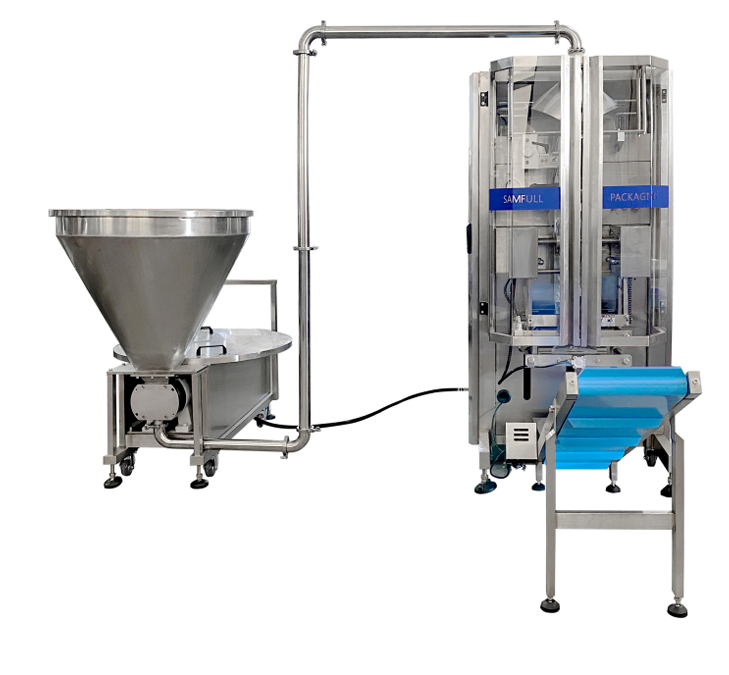

Foshan Samfull Packaging Machine Co.,LTD (SAMFULL) – Automatic filling and packing machine – SF-2.0T

Description

Loading...

Taking too long?

Reload document

| Open in new tab

Download [118.43 KB]

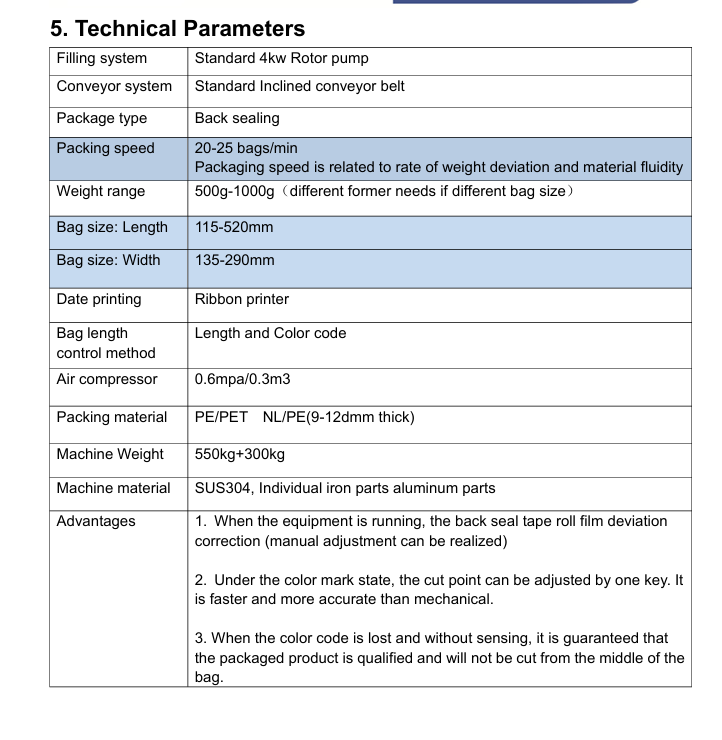

Techncial Sheet:

Vertical form-fill-seal packaging machine with back-sealing configuration.
Filling system equipped with a standard 4 kW rotor pump.
Integrated inclined conveyor belt feeding system.
Packaging capacity: 20–25 bags/min, depending on material flowability and weight consistency.
Supported filling weight range: 500 g to 1,000 g.
Applicable bag length: 115–520 mm.
Applicable bag width: 135–290 mm.
Ribbon printer for date and batch coding.
Bag length controlled through length and color-code detection.
Air consumption: 0.3 m³/min at 0.6 MPa.
Compatible packaging materials: PE/PET and NL/PE films (9–12 mm thickness).
Machine weight: approximately 850 kg (550 kg main machine + 300 kg auxiliary components).
Construction materials: SUS304 stainless steel, with aluminum and iron structural components
