F.B. Srl – Well system – FB6SX55

0,00

Well system with 2 water pumps, discharge piping (24m) and electricity supply cabinet (15 kW)

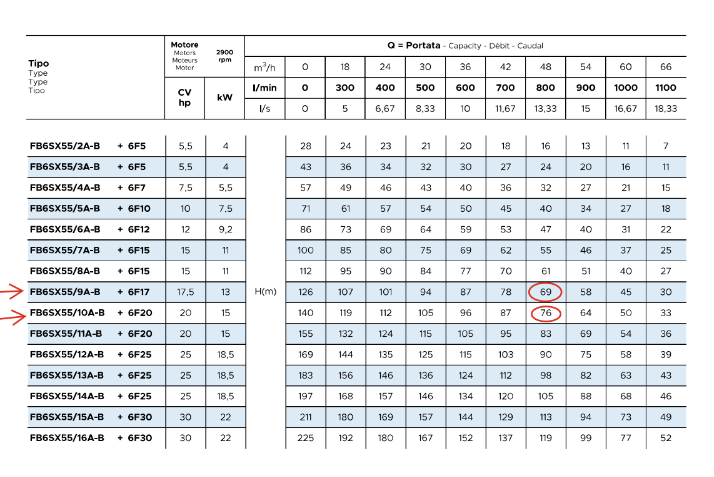

Technical Specifications of the pumps:

-F.B. Pumps model FB6SX55/10,

      • flow capacity of 48 m3/h,
      • h = 4m
      • Maximum efficiency = 74.6%,
      • power  =15 kW,
      • nominal pressure=  5 barg,
      • annual water consumption = up to 200,000 m3/year, equivalent to  5600 m3/ha.



Out of stock

SKU: 3241 Category:
The item has not been assessed for digitalization/automation

Description

Well system with 2 water pumps, discharge piping (24m) and electricity supply cabinet (15 kW)

Technical Specifications of the pumps:

  • F.B. Pumps model FB6SX55/10, flow capacity of 48 m3/h, h = 4m and Maximum efficiency = 74.6%, power  =15 kW, nominal pressure=  5 barg, annual water consumption = up to 200,000 m3/year, equivalent to  5600 m3/ha.
