Tehcnical Sheet:

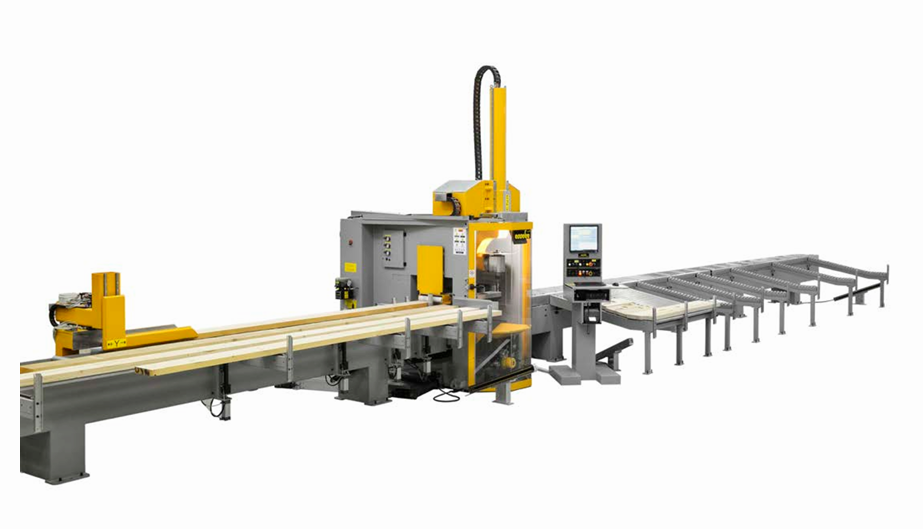

- ESSETRE Techno Saw CNC timber processing center with 7 controlled axes, fixed portal frame, continuous interpolation, automatic loading/unloading, designed for cutting and milling structural timber elements up to 13,000 × 450 × 150 mm.
- 5-axis machining unit equipped with a patented double-output electrospindle, 9 kW installed spindle power, variable speed 1,000–7,000 rpm, HSK 63F tool interface, and rotational ranges of 250° (B-axis) and 540° (C-axis).
- Automatic tool management featuring an 8-position HSK 63F tool changer, two Ø480 mm saw blades, helical cutters, dovetail cutter, hogger cutter, and 45° inclined cutter.
- Automatic material handling system with NC-controlled loading and unloading grippers (Y1 and Y2 axes), motorized beam conveyors, pneumatic clamping devices, and capacity for timber lengths up to 13 m.
- High-performance axis speeds of 100 m/min (X-axis), 150 m/min (Y-axis), and 50 m/min (Z-axis), driven by brushless motors on precision rack-and-pinion systems.
- Control and software package including ESSETRE TRAVI 3D software, BTL 10.4 importer, RTCP functionality, TPA numerical control, Windows 11 Pro interface, Intel Core i5 processor, 16 GB RAM, and 512 GB SSD.
- Utilities and power requirements: electrical supply 400 V, 50 Hz (±5%), spindle power 9 kW (main installed process power), compressed air consumption 200 l/min at 7 bar, air-conditioned electrical cabinet
