Description

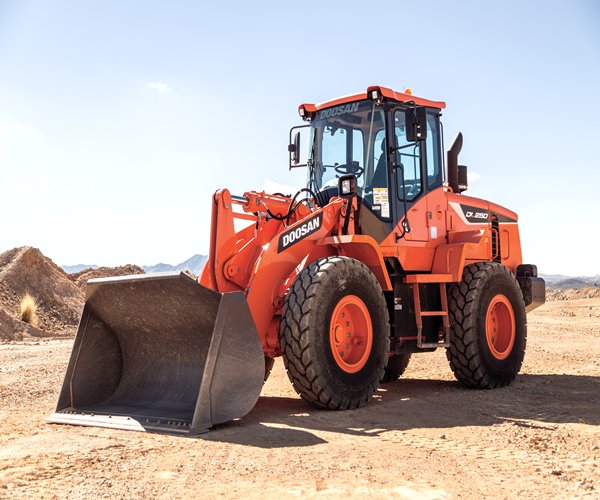

.jpg)
Engine
-
- RATED FLYWHEEL POWER (GROSS)
- 128 kW @ 2,100 rpm
-
- RATED HORSE POWER (NET)
- 128 kW @ 2,100 rpm
-
- MAX. TORQUE (NET)
- 82 kgf·m @ 1,400 rpm
Hydraulic System
-
- MAIN PUMP: DISPLACEMENT
- 74 cm³/rev
-
- BOOM SPEED – UP (LOADED)
- 6 s (±0.5 s)
-
- BOOM SPEED – DOWN
- 3.5 s (±0.4 s)
-
- BUCKET SPEED – DUMP
- 1.4 s (±0.3 s)
-
- MAIN PUMP: MAX. FLOW RATE (EACH)
- 155 l/min
-
- MAIN PUMP: MAIN RELIEF PRESSURE
- 265 bar
-
- TOTAL CYCLE TIME
- 10.9 s (±0.3 s)
Travel System/Drive Mechanism
-
- TRAVEL PERFORMANCE: GRADEABILITY
- 30° @ 58 %
-
- TRAVELING PERFORMANCE: MAX. TRACTIVE EFFORT
- 12 t
Weights
-
- OPERATING WEIGHT
- 13.66 t
Dimensions
-
- BUCKET CAPACITY
- 2.5 m³
-
- BUCKET WIDTH
- 2,740 mm
-
- HINGE PIN HEIGHT
- 3,858 mm
-
- DUMP REACH AT 45° (FULLY RAISED)
- 1,073 mm
-
- DUMP HEIGHT AT 45° (FULLY RAISED)
- 2,802 mm
-
- OVERALL HEIGHT
- 3,280 mm
-
- OVERALL LENGTH
- 7,470 mm
-
- WHEEL BASE
- 3,010 mm
-
- GROUND CLEARANCE
- 435 mm
-
- EXTERNAL TURNING RADIUS AT BUCKET EDGE
- 6,045 mm
-
- STATIC TIPPING LOAD (STRAIGHT)
- 10,885 kg
-
- STATIC TIPPING LOAD (FULL TURN)
- 9,610 kg
-
- BREAKOUT FORCE
- 107 kN
-
- REAR AXLE OSCILLATION
- 22°
Transmission
-
- TRAVEL SPEED FORWARD – 1ST GEAR
- 6.6 km/h
Refill Capacities
-
- FUEL TANK
- 235 l
-
- COOLING SYSTEM
- 31.4 l
-
- HYDRAULIC SYSTEM
- 150 l
-
- HYDRAULIC TANK
- 120 l
