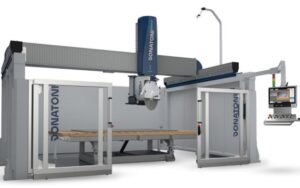

Donatoni – CNC bridge milling machine – D825Q
0,00€
| Number of interpolated axes |
N° |
5 |
| Carriage stroke X axis |
mm |
3800 |
| Maximum carriage speed (X axis) |
m/min |
0-45 |
| Bridge stroke Y axis |
mm |
2950 |
| Maximum bridge speed (Y axis) |
m/min |
0-45 |
| Vertical stroke Z axis |
mm |
800 |
| Maximum head speed (Z axis) |
m/min |
0-6 |
| Blade-carrying head rotation (C axis) |
deg |
-5°/365° |
| Disc head tilting movement (axis A) |
deg |
0/90° |
| Working table dimensions |
mm |
3500×2000 |
| Minimum disc diameter |
mm |
350 |
| Maximum disc diameter |
mm |
850 |
| Maximum cutting depth |
mm |
310 |
| Electro spindle motor power |
kW |
22/S6 |
| TOOL electro spindle motor nominal torque |
Nm |
151,4/S6 |
| TOOL electro spindle motor speed range |
rpm |
0-5500 |
| Spindle shaft diameter |
mm |
50 |
| Suction cups stroke |
mm |
295 |
| Max. disc dimensions with suction cups |
mm |
725 |
| Max weight lift with suction cups |
kg |
600 |
| Slab lenght gauges stroke |
mm |
300 |
| Max. disc usable with slab lenght gauges |
mm |
725 |
| Water consumption |
l/min |
50 |
| Air Consumption |
l/min |
20 |
| Standard electric voltage |
V/Hz |
400±10% / 50 |
| Total installed power |
kW |
37 |
| Approx. total weight of the machine |
kg |
4800 |
Out of stock
Technical specification:
